TSSC-FS05 Single & Dual Cartridge Seal(replace FLOWSERVE QB )
TSSC-FS05 Operating Limits : Pressure: 5.17MPa Speed: 23m/s Temperature: -40℃~+204℃ Rotary Ring (SiC/Carbon/TC) Stationary Ring (SiC/Carbon/TC) Secondary Seal (VITON/Encapsulated Ring/PTFE) Other ...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
|

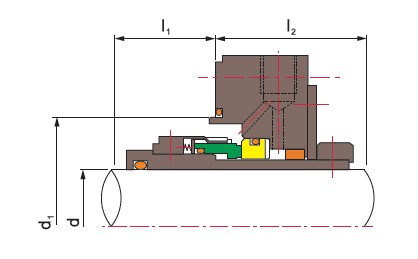

d1 |
d |
l1 |
l2 |
|
min |
max |
min |
min |
|
1.718 |
0.500 |
1.406 |
2.031 |
|
1.750 |
0.563 |
1.406 |
2.031 |
|
1.843 |
0.625 |
1.406 |
2.031 |
|
1.968 |
0.750 |
1.468 |
2.031 |
|
2.093 |
0.813 |
1.437 |
2.063 |
|
2.218 |
0.875 |
1.437 |
2.063 |
|
2.343 |
1.000 |
1.437 |
2.219 |
|
2.593 |
1.125 |
1.781 |
2.219 |
|
2.718 |
1.250 |
1.781 |
2.219 |
|
2.843 |
1.375 |
1.781 |
2.375 |
|
2.968 |
1.500 |
1.937 |
2.500 |
|
3.156 |
1.625 |
2.000 |
2.500 |
|
3.281 |
1.750 |
2.000 |
2.500 |
|
3.406 |
1.875 |
1.968 |
2.594 |
|
d1 |
d |
l1 |
l2 |
|
min |
max |
min |
min |
|
3.531 |
2.000 |
1.968 |
2.594 |
|
3.843 |
2.125 |
2.250 |
2.625 |
|
3.968 |
2.250 |
2.250 |
2.625 |
|
4.093 |
2.375 |
2.250 |
2.625 |
|
4.218 |
2.500 |
2.250 |
2.781 |
|
4.343 |
2.625 |
2.250 |
2.781 |
|
4.468 |
2.750 |
2.250 |
2.781 |
|
4.593 |
2.875 |
2.250 |
2.906 |
|
4.687 |
3.000 |
2.156 |
3.000 |
|
4.843 |
3.125 |
2.156 |
3.000 |
|
4.968 |
3.250 |
2.125 |
3.031 |
|
5.062 |
3.375 |
2.215 |
3.031 |
|
5.187 |
3.500 |
2.125 |
3.031 |
|
5.562 |
3.625 |
2.218 |
3.188 |
|
d1 |
d |
l1 |
l2 |
|
min |
max |
min |
min |
|
5.687 |
3.750 |
2.218 |
3.188 |
|
5.812 |
3.875 |
2.218 |
3.219 |
|
5.937 |
4.000 |
2.218 |
3.219 |
|
6.062 |
4.125 |
2.125 |
3.313 |
|
6.187 |
4.250 |
2.125 |
3.313 |
|
6.312 |
4.375 |
2.125 |
3.313 |
|
6.437 |
4.500 |
2.125 |
3.313 |
|
6.562 |
4.625 |
2.125 |
3.313 |
|
6.937 |
4.750 |
2.312 |
3.313 |
|
7.062 |
4.875 |
2.312 |
3.313 |
|
7.312 |
5.125 |
2.312 |
3.313 |
|
7.437 |
5.250 |
2.312 |
3.313 |
|
7.562 |
5.375 |
2.437 |
3.563 |
|
7.687 |
5.500 |
2.437 |
3.563 |
