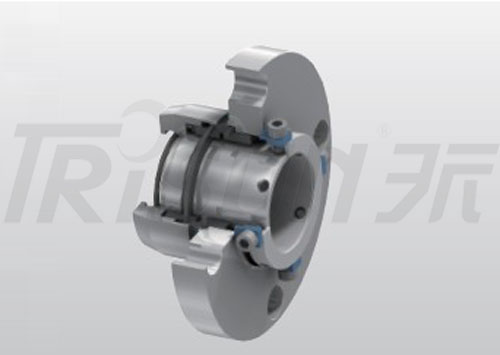

TSSC-C04 Single & Dual Cartridge Seal
TSSC-C04 perating Limits : Pressure: 2MPa Speed: 25m/s Temperature: +260℃ Rotary Ring (SiC/Carbon/TC) Stationary Ring (SiC/TC) Secondary Seal (VITON/Encapsulated Ring/PTFE) Other Parts (SUS304/SUS31...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）

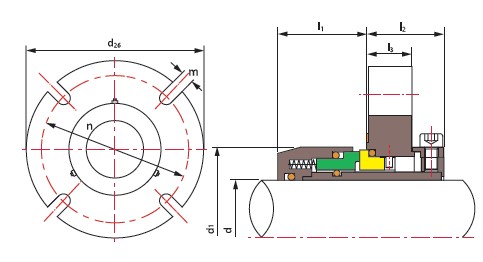

TSSC-C04
|
d |
d26 |
d1 |
l1 |
l2 |
n |
m |
l3 |
||
|
max |
10mm |
12mm |
16mm |
||||||
|
35 |
118 |
60 |
39 |
34 |
95 |
\ |
\ |
12 |
20 |
|
38 |
137 |
95 |
39 |
34 |
114 |
\ |
\ |
12 |
20 |
|
40 |
128 |
70 |
39 |
34 |
105 |
\ |
\ |
12 |
20 |
|
45 |
128 |
70 |
39 |
34 |
105 |
\ |
\ |
12 |
20 |
|
48 |
147 |
105 |
39 |
34 |
124 |
\ |
\ |
12 |
20 |
|
50 |
150 |
85 |
39 |
34 |
\ |
125 |
\ |
18 |
20 |
|
50 |
150 |
85 |
39 |
34 |
\ |
\ |
145 |
18 |
20 |
|
55 |
150 |
85 |
39 |
34 |
\ |
125 |
\ |
14 |
20 |
|
60 |
160 |
95 |
39 |
34 |
\ |
135 |
145 |
18 |
20 |
|
60 |
160 |
95 |
39 |
34 |
\ |
\ |
\ |
18 |
20 |
|
65 |
160 |
102 |
50 |
46 |
\ |
135 |
\ |
14 |
26 |
|
65 |
173 |
131 |
50 |
46 |
150 |
\ |
\ |
12 |
26 |
|
70 |
200 |
117 |
50 |
46 |
\ |
\ |
175 |
18 |
26 |
|
75 |
183 |
140 |
50 |
46 |
160 |
\ |
\ |
12 |
26 |
|
80 |
199 |
122 |
50 |
46 |
\ |
\ |
170 |
18 |
26 |
|
85 |
199 |
122 |
50 |
46 |
\ |
\ |
170 |
18 |
26 |
|
85 |
199 |
132 |
50 |
46 |
\ |
\ |
190 |
18 |
26 |
|
90 |
209 |
132 |
50 |
46 |
\ |
\ |
180 |
18 |
26 |
|
95 |
209 |
132 |
50 |
46 |
\ |
\ |
180 |
18 |
26 |
|
100 |
213 |
171 |
50 |
46 |
190 |
\ |
\ |
12 |
26 |
