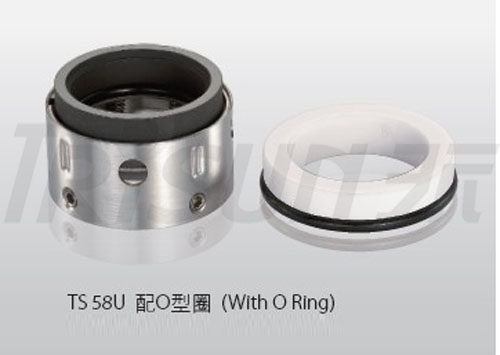

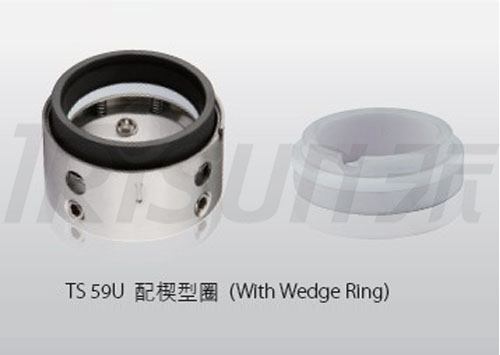

TS58U Machined Mechanical Seal (Replace AESSEAL M03S ,BURGMANN BT-C5.KU,CRANE 58U,MTU DR3-S) TS59U (Replace AESSEAL M03 ,BURGMANN BT-C56.KU,CRANE 59U,MTU DR3-SC)
our Mechanical seal model 58Ucan Replace AESSEAL M03S ,BURGMANN BT-C5.KU,CRANE 58U , and MTU DR3-S,which is widely used for industrial pumps. The normal material combination include resin carbon/ceram...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
used for industrial pumps. The normal material combination include resin carbon/ceramic/nbr/ss304,resin carbon/tc/nbr/ss304,sic/sic/nbr/
ss304 ,tc/tc/nbr/ss304 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

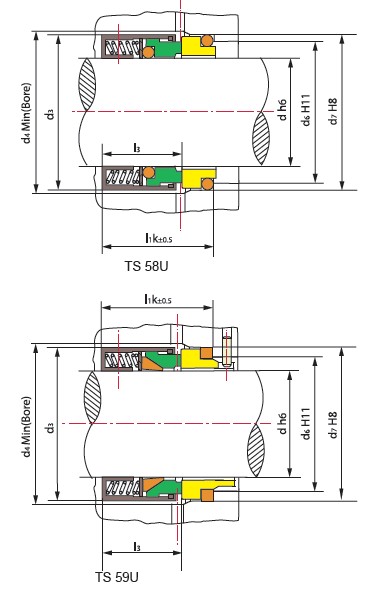

Operating Limits:
|
Seal size |
d3 |
d4 |
l1k |
l3 |
d6 |
d7 |
|
14 |
24 |
26 |
35.0 |
23.0 |
21 |
25 |
|
16 |
26 |
28 |
35.0 |
23.0 |
23 |
27 |
|
18 |
32 |
34 |
37.5 |
24.0 |
27 |
33 |
|
20 |
34 |
36 |
37.5 |
24.0 |
29 |
35 |
|
22 |
36 |
38 |
37.5 |
24.0 |
31 |
37 |
|
24 |
38 |
40 |
40.0 |
26.7 |
33 |
39 |
|
25 |
39 |
41 |
40.0 |
27.0 |
34 |
40 |
|
28 |
42 |
44 |
42.5 |
30.0 |
37 |
43 |
|
30 |
44 |
46 |
42.5 |
30.5 |
39 |
45 |
|
32 |
46 |
48 |
42.5 |
30.5 |
42 |
48 |
|
33 |
47 |
49 |
42.5 |
30.5 |
42 |
48 |
|
Seal size |
d3 |
d4 |
l1k |
I3 |
d6 |
d7 |
|
35 |
49 |
51 |
42.5 |
30.5 |
44 |
50 |
|
38 |
54 |
58 |
45.0 |
32.0 |
49 |
56 |
|
40 |
56 |
60 |
45.0 |
32.0 |
51 |
58 |
|
43 |
59 |
63 |
45.0 |
32.0 |
54 |
61 |
|
45 |
61 |
65 |
45.0 |
32.0 |
56 |
63 |
|
48 |
64 |
68 |
45.0 |
32.0 |
59 |
66 |
|
50 |
66 |
70 |
47.5 |
34.0 |
62 |
70 |
|
53 |
69 |
73 |
47.5 |
34.0 |
65 |
73 |
|
55 |
71 |
75 |
47.5 |
34.0 |
67 |
75 |
|
58 |
78 |
83 |
52.5 |
39.0 |
70 |
78 |
|
60 |
80 |
85 |
52.5 |
39.0 |
72 |
80 |
|
Seal size |
d3 |
d4 |
l1k |
I3 |
d6 |
d7 |
|
63 |
83 |
88 |
52.5 |
39.0 |
75 |
83 |
|
65 |
85 |
90 |
52.5 |
39.0 |
77 |
85 |
|
68 |
88 |
93 |
52.5 |
39.0 |
81 |
90 |
|
70 |
90 |
95 |
60.0 |
45.5 |
83 |
92 |
|
75 |
95 |
104 |
60.0 |
45.5 |
88 |
97 |
|
80 |
104 |
109 |
60.0 |
45.0 |
95 |
105 |
|
85 |
109 |
114 |
60.0 |
45.0 |
100 |
110 |
|
90 |
114 |
119 |
65.0 |
50.0 |
105 |
115 |
|
95 |
119 |
124 |
65.0 |
50.0 |
110 |
120 |
|
100 |
124 |
129 |
65.0 |
50.0 |
115 |
125 |
