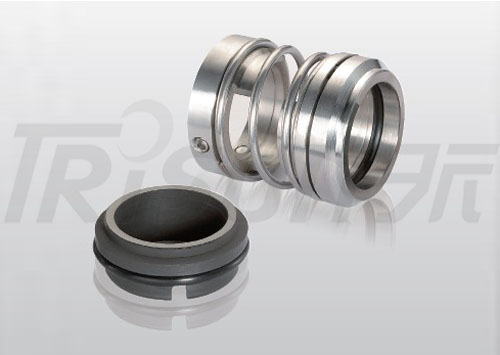

TS 4U(TS L) Machined Mechanical Seal
Our mechanical seal model 4U is widely used for industrial pumps. The normal material combination include ss304/resin carbon/nbr/ss304,sic/resin carbon/nbr/ss304,tc/resin carbon/nbr/304,sic/sic/nbr/ss...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Our mechanical seal model 4U is widely used for industrial pumps. The normal material combination include ss304/resin carbon/nbr/ss304,sic/resin carbon/nbr/ss304,tc/resin carbon/nbr/304,sic/sic/nbr/ss304 and tc/tc/nbr/ss304. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
TS 4U(TS L)
Operating Limits:
Pressure: 0~1MPa
Speed: ≤20m/s
Temperature: -20℃~+180℃
|

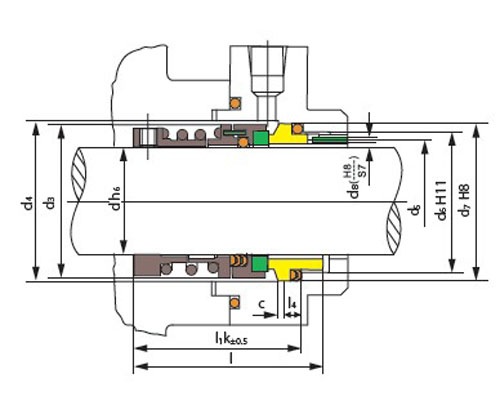

Seal size |
d3 |
d4 |
d6 |
d7 |
d5 |
d8 |
l |
l1 |
l4 |
c |
|
min |
(±0.5) |
(±0.5) |
||||||||
|
18 |
32 |
34 |
27 |
33 |
23 |
3 |
52.0 |
45.0 |
5 |
2.0 |
|
20 |
34 |
36 |
29 |
35 |
25 |
3 |
52.0 |
45.0 |
5 |
2.0 |
|
22 |
36 |
38 |
31 |
37 |
27 |
3 |
53.0 |
46.0 |
5 |
2.0 |
|
24 |
38 |
40 |
33 |
39 |
29 |
3 |
56.0 |
49.0 |
5 |
2.0 |
|
25 |
39 |
41 |
34 |
40 |
30 |
3 |
56.0 |
49.0 |
5 |
2.0 |
|
28 |
42 |
44 |
37 |
43 |
33 |
3 |
56.5 |
49.5 |
5 |
2.0 |
|
30 |
44 |
46 |
39 |
45 |
35 |
3 |
57.0 |
50.0 |
5 |
2.0 |
|
32 |
46 |
48 |
42 |
48 |
38 |
3 |
58.5 |
51.5 |
5 |
2.0 |
|
33 |
47 |
49 |
42 |
48 |
38 |
3 |
58.5 |
51.5 |
5 |
2.0 |
|
35 |
49 |
51 |
44 |
50 |
40 |
3 |
58.5 |
51.5 |
5 |
2.0 |
|
38 |
54 |
58 |
49 |
56 |
44 |
4 |
62.0 |
55.0 |
6 |
2.0 |
|
40 |
56 |
60 |
51 |
58 |
46 |
4 |
62.0 |
55.0 |
6 |
2.0 |
|
43 |
59 |
63 |
54 |
61 |
49 |
4 |
65.0 |
58.0 |
6 |
2.0 |
|
45 |
61 |
65 |
56 |
63 |
51 |
4 |
65.0 |
58.0 |
6 |
2.0 |
|
48 |
64 |
68 |
59 |
66 |
54 |
4 |
66.0 |
59.0 |
6 |
2.0 |
|
50 |
66 |
70 |
62 |
70 |
57 |
4 |
67.0 |
60.0 |
6 |
2.5 |
|
53 |
69 |
73 |
65 |
73 |
60 |
4 |
71.5 |
64.5 |
6 |
2.5 |
|
55 |
71 |
75 |
67 |
75 |
62 |
4 |
73.5 |
66.5 |
6 |
2.5 |
|
58 |
78 |
83 |
70 |
78 |
65 |
4 |
76.5 |
69.5 |
6 |
2.5 |
|
60 |
80 |
85 |
72 |
80 |
67 |
4 |
76.5 |
69.5 |
6 |
2.5 |
|
63 |
83 |
88 |
75 |
83 |
70 |
4 |
78.5 |
71.5 |
6 |
2.5 |
|
65 |
85 |
90 |
77 |
85 |
72 |
4 |
81.5 |
74.5 |
6 |
2.5 |
|
68 |
88 |
93 |
81 |
90 |
75 |
4 |
82.5 |
75.5 |
7 |
2.5 |
|
70 |
90 |
95 |
83 |
92 |
77 |
4 |
86.5 |
79.5 |
7 |
2.5 |
|
75 |
99 |
104 |
88 |
97 |
82 |
4 |
87.0 |
80.0 |
7 |
2.5 |
|
80 |
104 |
109 |
95 |
105 |
88 |
4 |
90.5 |
83.5 |
7 |
3.0 |
|
85 |
109 |
114 |
100 |
no |
93 |
4 |
90.5 |
83.5 |
7 |
3.0 |
|
90 |
114 |
119 |
105 |
115 |
98 |
4 |
92.5 |
85.5 |
7 |
3.0 |
|
95 |
119 |
124 |
110 |
120 |
103 |
4 |
93.5 |
86.5 |
7 |
3.0 |
|
100 |
124 |
129 |
115 |
125 |
108 |
4 |
93.5 |
86.5 |
7 |
3.0 |
