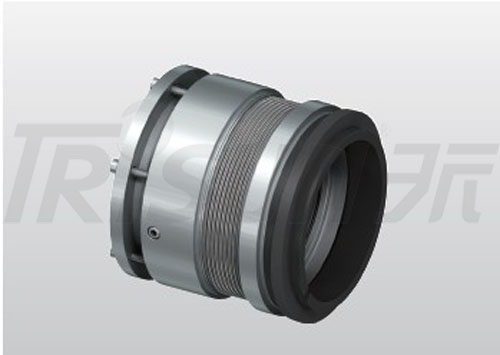

TSMB-J05 Metal Bellows Seal(replace John crane 606 )
TSMB-J05(TS 606) Operating Limits : Pressure: 2MPa (single ply bellow) 6.9MPa (double ply bellow） Speed: 25m/s Temperature: -75℃~+425℃ Rotary Ring (SiC/Carbon/TC) Stationary Ring (SiC/TC) Second...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
TSMB-J05(TS 606)
|
Shaft |
d |
d1 |
l |
|
0.750 |
0.750 |
1.625 |
2.312 |
|
0.875 |
0.875 |
1.750 |
3.343 |
|
1.000 |
1.000 |
1.875 |
2.343 |
|
1.125 |
1.125 |
2.000 |
2.375 |
|
1.250 |
1.250 |
2.125 |
2.375 |
|
1.375 |
1.375 |
2.250 |
2.468 |
|
1.500 |
1.500 |
2.375 |
2.500 |
|
1.625 |
1.625 |
2.500 |
2.500 |
|
1.750 |
1.750 |
2.625 |
2.531 |
|
1.875 |
1.875 |
2.750 |
2.531 |
|
2.000 |
2.000 |
2.875 |
2.562 |
|
2.125 |
2.125 |
3.000 |
2.562 |
|
2.250 |
2.250 |
3.250 |
2.750 |
|
2.375 |
2.375 |
3.375 |
2.781 |
|
2.500 |
2.500 |
3.500 |
2.781 |
|
2.625 |
2.625 |
3.687 |
2.875 |
|
2.750 |
2.750 |
3.812 |
3.000 |
|
2.875 |
2.875 |
4.000 |
3.000 |
|
3.000 |
3.000 |
4.125 |
3.000 |
|
3.125 |
3.125 |
4.250 |
3.000 |
|
3.250 |
3.250 |
4.375 |
3.000 |
|
3.375 |
3.375 |
4.500 |
3.000 |
|
3.500 |
3.500 |
4.625 |
3.000 |
|
3.625 |
3.625 |
4.750 |
3.000 |
|
3.750 |
3.750 |
4.875 |
3.000 |
|
Shaft |
d |
d1 |
l |
|
20 |
20 |
41.28 |
58.72 |
|
22 |
22 |
44.45 |
59.51 |
|
25 |
25 |
47.63 |
59.51 |
|
30 |
30 |
50.80 |
60.33 |
|
32 |
32 |
53.98 |
60.33 |
|
35 |
35 |
57.15 |
62.69 |
|
38 |
38 |
60.33 |
63.50 |
|
40 |
40 |
63.50 |
63.50 |
|
45 |
45 |
66.68 |
64.29 |
|
48 |
48 |
69.85 |
64.29 |
|
50 |
50 |
73.03 |
65.07 |
|
55 |
55 |
76.20 |
65.07 |
|
60 |
60 |
85.73 |
70.64 |
|
65 |
65 |
88.90 |
70.64 |
|
70 |
70 |
96.82 |
76.20 |
|
75 |
75 |
104.78 |
76.20 |
|
80 |
80 |
107.95 |
76.20 |
|
85 |
85 |
114.30 |
76.20 |
|
90 |
90 |
117.48 |
76.20 |
|
95 |
95 |
123.83 |
76.20 |
|
100 |
100 |
130.18 |
76.20 |
