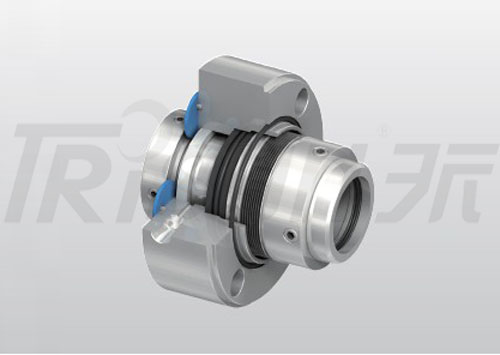

TSMB-FS02 Metal Bellows Seal(replace FLOWSERVE BX )
TSMB-FS02 Operating Limits : Pressurel2.7MPa Speed:23m/s Temperature:-30℃~+204℃ Rotary Ring (SIC/Carbon/TC) Stationary Ring (SiC /TC) Secondary Seal (VITON/Encapsulated Ring/PTFE) Metal Bellows (S...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）

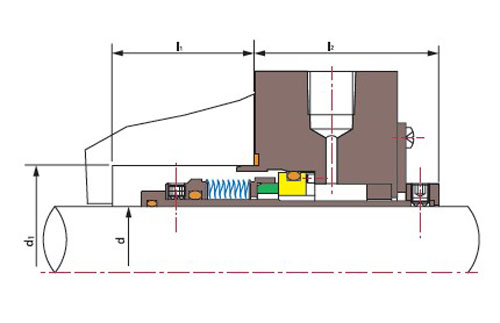

TSMB-FS02
|
d1 |
d |
l1 |
l2 |
|
1.625 |
0.750 |
1.437 |
1.937 |
|
1.687 |
0.812 |
1.468 |
1.968 |
|
1.750 |
0.875 |
1.468 |
1.968 |
|
1.875 |
1.000 |
1.406 |
2.000 |
|
2.000 |
1.125 |
1.281 |
2.312 |
|
2.125 |
1.250 |
1.375 |
2.312 |
|
2.250 |
1.375 |
1.531 |
2.343 |
|
2.562 |
1.437 |
1.625 |
2.375 |
|
2.687 |
1.562 |
1.937 |
2.500 |
|
2.812 |
1.687 |
1.968 |
2.500 |
|
2.937 |
1.812 |
1.937 |
2.531 |
|
3.187 |
1.937 |
1.906 |
2.656 |
|
3.312 |
2.062 |
1.906 |
2.656 |
|
3.437 |
2.187 |
1.906 |
2.718 |
|
3.562 |
2.250 |
2.062 |
2.718 |
|
3.562 |
2.375 |
2.062 |
2.718 |
|
3.687 |
2.500 |
2.125 |
2.875 |
|
3.937 |
2.625 |
2.062 |
3.000 |
|
4.062 |
2.750 |
2.062 |
3.000 |
|
4.250 |
2.875 |
2.156 |
3.156 |
|
4.375 |
3.000 |
2.156 |
3.156 |
|
4.500 |
3.125 |
2.156 |
3.156 |
|
4.625 |
3.250 |
2.156 |
3.156 |
|
4.875 |
3.500 |
2.156 |
3.156 |
|
5.187 |
3.750 |
2.156 |
3.375 |
|
5.500 |
4.000 |
2.156 |
3.406 |
|
5.750 |
4.250 |
2.156 |
3.406 |
|
6.250 |
4.750 |
2.250 |
3.406 |
|
d1 |
d |
l1 |
l2 |
|
19.0 |
41.3 |
28.6 |
30.2 |
|
20.6 |
42.8 |
29.4 |
50.0 |
|
22.2 |
44.4 |
29.4 |
30.2 |
|
25.4 |
47.6 |
27.8 |
30.2 |
|
28.6 |
50.8 |
24.6 |
34.9 |
|
31.8 |
54.0 |
26.2 |
34.9 |
|
34.9 |
57,1 |
30.2 |
34.9 |
|
36.5 |
65.1 |
32.5 |
34.9 |
|
39.7 |
68.3 |
34.1 |
34.9 |
|
42.9 |
71.4 |
34.9 |
34.9 |
|
46.0 |
74.8 |
34.1 |
34.9 |
|
49.2 |
81.0 |
33.3 |
34.9 |
|
52.4 |
84.1 |
33.3 |
34.9 |
|
55.6 |
87.3 |
33.3 |
34.9 |
|
57.1 |
90.5 |
37.3 |
34.9 |
|
60.3 |
90.5 |
37.3 |
34.9 |
|
63.5 |
93.7 |
38.9 |
34.9 |
|
66.7 |
100.0 |
38.1 |
38.1 |
|
69.9 |
103.2 |
38.1 |
38.1 |
|
73.0 |
107.9 |
39.7 |
42.9 |
|
76.2 |
111.1 |
39.7 |
42.9 |
|
79.4 |
114.3 |
39.7 |
42.9 |
|
82.5 |
117.5 |
39.7 |
42.9 |
|
88.9 |
123.8 |
39.7 |
42.9 |
|
95.3 |
131.8 |
39.7 |
42.9 |
|
101.6 |
139.7 |
39.7 |
86.5 |
|
107.9 |
146.1 |
39.7 |
43.7 |
|
120.6 |
158.8 |
39.7 |
43.7 |
