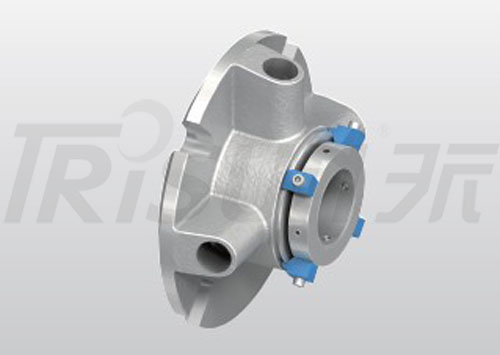

TSMB-FS08 Metal Bellows Seal(replace FLOWSERVE ISC1BX )
TSMB-FS08 Operating Limits : Pressure: 2MPa Speed: 23m/s Temperature: -40℃~+220℃ Rotary Ring (SiC /Carbon/TC) Stationary Ring (SiC /TC) Secondary Seal (VITON/Encapsulated Ring/PTFE) Metal Bellows ...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）

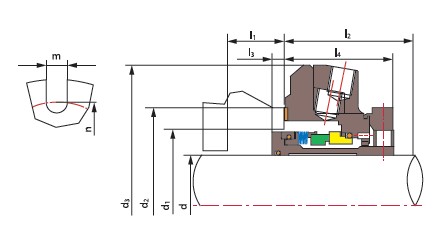

TSMB-FS08
|
d |
d1 |
d2 |
d3 |
l3 |
l1 |
l4 |
l2 |
n |
m |
|
|
min |
max |
min |
||||||||
|
1.000 |
1.625 |
1.875 |
2.115 |
3.69～3.75 |
0.212 |
0.274 |
1.913 |
1.975 |
2.750 |
0.440 |
|
1.125 |
1.750 |
2.000 |
2.240 |
3.69～3.75 |
0.212 |
0.274 |
1.913 |
1.975 |
2.875 |
0.440 |
|
1.250 |
1.890 |
2.245 |
2.495 |
4.19～4.25 |
0.212 |
0.274 |
1.913 |
1.975 |
3.125 |
0.562 |
|
1.375 |
2.000 |
2.375 |
2.615 |
3.94～.00 |
0.212 |
0.264 |
1.913 |
1.975 |
3.250 |
0.440 |
|
1.437 |
2.250 |
2.688 |
2.775 |
4.72～4.78 |
0.222 |
0.284 |
1.973 |
2.035 |
3.750 |
0.560 |
|
1.500 |
2.250 |
2.525 |
2.775 |
4.69～4.75 |
0.202 |
0.264 |
1.973 |
2.035 |
3.750 |
0.560 |
|
1.625 |
2.375 |
2.780 |
3.030 |
4.69～4.75 |
0.202 |
0.264 |
1.973 |
2.035 |
3.750 |
0.560 |
|
1.750 |
2.500 |
2.875 |
3.150 |
4.94～5.00 |
0.202 |
0.264 |
1.973 |
2.035 |
3.875 |
0.560 |
|
1.875 |
2.625 |
2.875 |
3.150 |
4.94～5.00 |
0.202 |
0.264 |
1.973 |
2.035 |
3.875 |
0.560 |
|
1.937 |
2.690 |
2.920 |
\ |
\ |
0.207 |
0.269 |
1.973 |
2.035 |
\ |
\ |
|
2.000 |
2.750 |
3.030 |
3.280 |
5.00～5.12 |
0.202 |
0.264 |
1.973 |
2.035 |
1.120 |
0.688 |
|
2.125 |
2.875 |
3.125 |
3.430 |
5.94 ～6.00 |
0.202 |
0.264 |
1.973 |
2.035 |
4.250 |
0.750 |
|
2.250 |
3.000 |
3.280 |
\ |
\ |
0.206 |
0.268 |
1.973 |
2.035 |
\ |
\ |
|
2.375 |
3.125 |
3.687 |
3.975 |
6.32～6.38 |
0.202 |
0.264 |
1.973 |
2.035 |
4.875 |
0.750 |
|
2.437 |
3.375 |
3.450 |
\ |
6.32～6.38 |
0.233 |
0.295 |
1.942 |
2.004 |
4.875 |
0.750 |
|
2.500 |
3.375 |
3.687 |
3.975 |
6.32 ～6.38 |
0.202 |
0.264 |
1.973 |
2.035 |
4.875 |
0.750 |
|
2.625 |
3.625 |
4.312 |
4.615 |
7.19～.25 |
0.204 |
0.266 |
2.726 |
2.788 |
5.625 |
0.880 |
|
2.750 |
3.750 |
4.312 |
4.615 |
7.19～7.25 |
0.204 |
0.266 |
2.726 |
2.788 |
5.625 |
0.880 |
