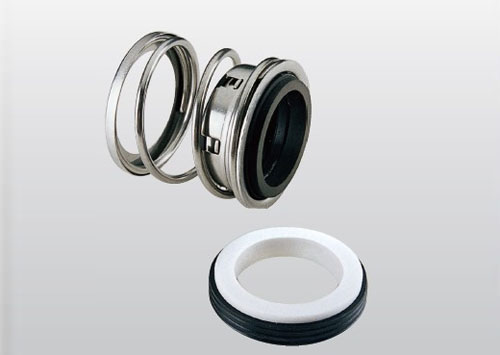

TS T2 Machined Mechanical Seal（Replace AESSEAL P04U,CRANE 2 (US)and FLOWSERVE 52）
Our Mechanical seal model T2 can Replace AESSEAL P04U,John CRANE 2 (US) and FLOWSERVE 52. The normal material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/s...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/
ss316 and so on. we also can make changes as customers'requirement or totally totally design a new type of
mechanical seal to meet clients'needs.
|

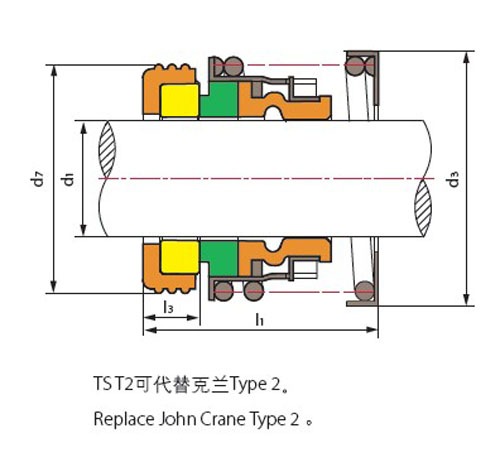

Model |
d1(inches) |
d3 |
d7 |
l1 |
l3 |
|
T2-1" |
25.400 |
46.00 |
41.275 |
36.50 |
11.10 |
|
T2-1 1/8" |
28.575 |
49.20 |
44.450 |
38.10 |
11.10 |
|
T2-1 1/4" |
31.750 |
52.40 |
47.625 |
38.10 |
11.10 |
|
T2-1 3/8" |
34.925 |
57.20 |
50.800 |
39.70 |
11.10 |
|
T2-1 1/2" |
38.100 |
60.30 |
53.975 |
39.70 |
11.10 |
|
T2-1 5/8" |
41.275 |
69.00 |
60.325 |
47.63 |
12.70 |
|
T2-1 3/4" |
44.450 |
69.90 |
63.500 |
47.63 |
12.70 |
|
T2-1 7/8" |
47.625 |
73.00 |
66.675 |
50.80 |
12.70 |
|
T2-2" |
50.800 |
76.20 |
69.850 |
50.80 |
12.70 |
|
T2-2 1/8" |
53.975 |
82.50 |
76.200 |
57.15 |
14.30 |
|
T2-2 1/4" |
57.150 |
85.70 |
79.375 |
57.15 |
14.30 |
|
T2-2 3/8" |
60.325 |
88.90 |
82.550 |
60.30 |
14.30 |
|
T2-2 1/2" |
63.500 |
94.00 |
85.725 |
60.30 |
14.30 |
|
T2-3" |
76.200 |
107.95 |
98.425 |
68.28 |
15.90 |
|
T2-4" |
101.600 |
141.28 |
123.830 |
78.57 |
19.84 |
