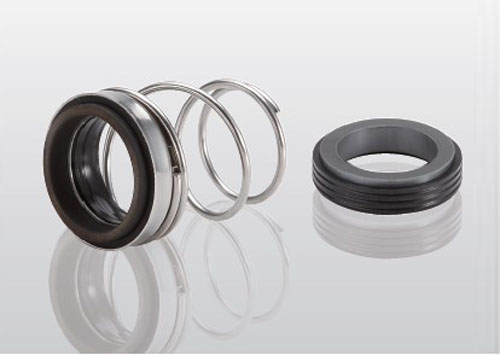

TS MG9 Machined Mechanical Seal (Replace BURGMANN MG9）
Our Mechanical seal model MG9 can Replace BURGMANN MG9,which is widely used for water pumps and submerged pump. we usually seat type G60 to match it. The normal material combination include carbon/cer...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
we usually seat type G60 to match it. The normal material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/
nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on. we also can make changes as customers'requirement or totally design
a new type of mechanical seal to meet clients'needs.
|

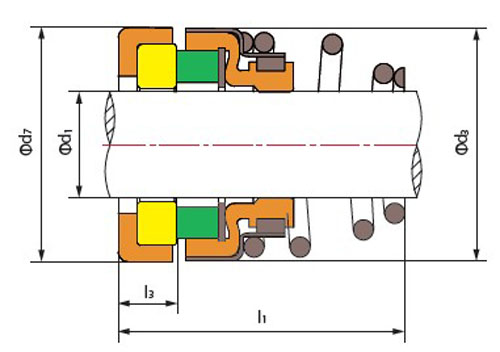

Model |
d1 |
d3 |
d7 |
l1 |
l3 |
|
TSMG912-20 |
20 |
32 |
35 |
37.5 |
7.5 |
|
TSMG912-22 |
22 |
33.5 |
37 |
37.5 |
7.5 |
|
TSMG912-24 |
24 |
37 |
39 |
40 |
7.5 |
|
TSMG912-25 |
25 |
38 |
40 |
40 |
7.5 |
|
TSMG912-28 |
28 |
41 |
43 |
42.5 |
7.5 |
|
TSMG912-30 |
30 |
43 |
45 |
42.5 |
7.5 |
|
TSMG912-32 |
32 |
45 |
48 |
42.5 |
7.5 |
|
TSMG912-33 |
33 |
46 |
48 |
42.5 |
7.5 |
|
TSMG912-35 |
35 |
48 |
50 |
42.5 |
7.5 |
|
TSMG912-38 |
38 |
52.5 |
56 |
45 |
9 |
|
TSMG912-40 |
40 |
55.5 |
58 |
45 |
9 |
|
TSMG912-45 |
45 |
60.5 |
63 |
45 |
9 |
|
TSMG912-48 |
48 |
64 |
66 |
45 |
9 |
|
TSMG912-50 |
50 |
66 |
70 |
47.5 |
9.5 |
|
TSMG912-53 |
53 |
69 |
73 |
47.5 |
11 |
|
TSMG912-55 |
55 |
71 |
75 |
47.5 |
11 |
|
TSMG901-1 1/8" |
28.575 |
41 |
44.45 |
52.37 |
11.1 |
|
TSMG901-1 3/8" |
34.925 |
48 |
50.8 |
53.95 |
11.1 |
|
TSMG901-1 1/2" |
38.1 |
52.5 |
54 |
53.95 |
11.1 |
|
TSMG901-1 3/4" |
44.45 |
60.5 |
63.5 |
63.5 |
12.7 |
