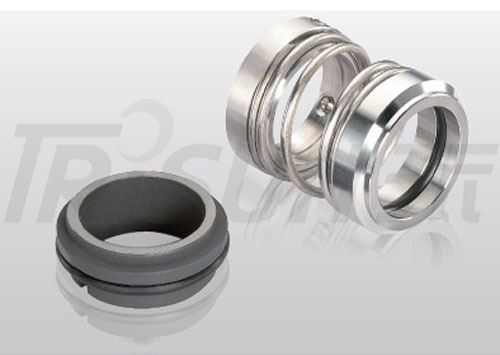

TS 1500 Machined Mechanical Seal

Our mechanical seal model 1500 belong to machined mechanical seal and is widely used for industrial pumps. we have 4 different structure ,1527,1523,1524 and 1528 for customers choice. The normal mater...

We are here to solve your problems professionally
Contact Now

Contact

Tel:0086-21-58355541
Fax:0086-21-58353141
Email: trisun24@trisunltd.com（sales）

Features
Parameters
Applications

Our mechanical seal model 1500 belong to machined mechanical seal and is widely used for industrial pumps. we have 4 different structure ,1527,1523,1524 and 1528 for customers' choice. The normal material combination include TC/Resin carbon/nbr/ss304, sic/resin carbon/nbr/ss304,sic/sic/nbr/ss304 and TC/TC/NBR/ss304 . we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

TS 1500

Operating Limits:

Pressure: 0~1MPa(TS1527,TS1528)

≤3MPa(TS1523,TS1524)

Speed: ≤15m/s

Temperature: -20℃~+180℃

Rotary Ring (SiC/TC/Carbon)

Stationary Ring (Carbon/SiC/TC)

Secondary Seal (EPDM/VITON/PTFE)

Spring & Other Parts (SUS304/SUS316)

Design Features

A.Rotary direction is immobile. The springs can be assorted into right-hand or left-hand. The Spring rotating direction is determined by the direction of the shaft rotation.

B.Except for the axial length, all other sizes conform to the ISO3069 and DIN24960 standards.

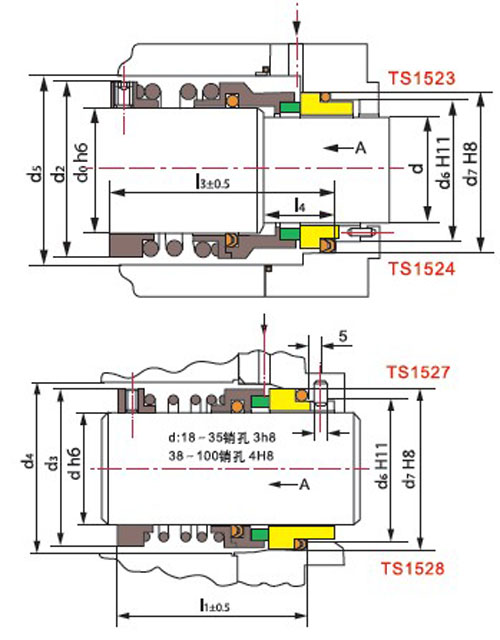

Seal size d(mm)	d₀	d₃	d₄	d₆	d₇	d₂	d_5/	l₃	l₁	l₄
Seal size d(mm)	d₀	d₃	min	d₆	d₇	d₂	min	l₃	l₁	l₄
18	22	32	34	27	33	36	38	55	45	20
20	24	34	36	29	35	38	40	60	45	20
22	26	36	38	31	37	40	42	60	45	20
24	28	38	40	33	39	42	44	60	50	20
25	30	39	41	34	40	44	46	60	50	20
28	33	42	44	37	43	47	49	65	50	20
30	35	44	46	39	45	49	51	65	50	20
32	38	46	48	42	48	54	58	65	55	20
33	38	47	49	42	48	54	58	65	55	20
35	40	49	51	44	50	56	60	65	55	20
38	43	54	58	49	56	59	63	75	55	23
40	45	56	61	51	58	61	65	75	55	23
43	48	59	63	54	61	64	68	75	60	23
45	50	61	65	56	63	66	70	75	60	23
48	53	64	68	59	66	69	73	85	60	23

Seal size d(mm)	d₀	d₃	d₄	d₆	d₇	d₂	d₅	l₃	l₁	l₄
Seal size d(mm)	d₀	d₃	min	d₆	d₇	d₂	min	l₃	l₁	l₄
50	55	66	70	62	70	71	75	85	60	25
53	58	69	73	65	73	78	83	85	70	25
55	60	71	75	67	75	80	85	85	70	25
58	63	78	83	70	78	83	88	85	70	25
60	65	80	85	72	80	85	90	95	70	25
63	68	83	88	75	83	88	93	95	70	25
65	70	85	90	77	85	90	95	95	80	25
68	73	88	93	81	90	93	98	95	80	28
70	75	90	95	83	92	99	104	95	80	28
75	80	99	104	88	97	104	109	105	80	28
80	85	104	109	95	105	109	114	105	90	28
85	90	109	114	100	110	114	119	105	90	28
90	95	114	119	105	115	119	124	105	90	28
95	100	119	124	110	120	124	129	105	90	28
100	105	124	129	115	125	129	134	105	90	28
