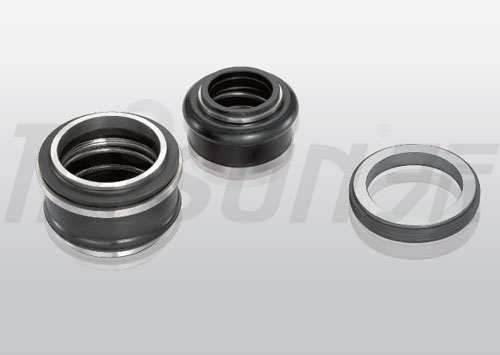

TS KB Machined Mechanical Seal
Our mechanical seal model KB belongs to machined mechanical seal and is widely used for all kinds of pumps. The normal material combination include resin carbon/sic/nbr/ss304,SIC/SIC/NBR/SS304 and TC/...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Our mechanical seal model KB belongs to machined mechanical seal and is widely used for all kinds of pumps. The normal material combination include resin carbon/sic/nbr/ss304,SIC/SIC/NBR/SS304 and TC/TC/NBR/SS304. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

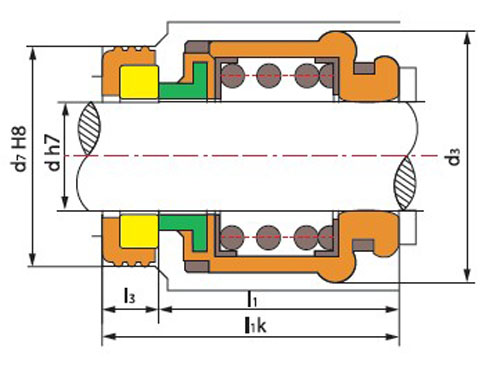

TS KB
|
Seal size |
d |
d3 |
d7 |
l1k |
l1 |
l3/ |
|
28 |
28 |
50.0 |
44 |
40.0 |
30.0 |
10.0 |
|
35 |
35 |
64.0 |
54 |
45.5 |
35.5 |
10.0 |
|
50 |
50 |
74.5 |
70 |
57.4 |
45.2 |
12.2 |
|
Seal size |
d |
d3 |
d7 |
l1k |
l1 |
l3 |
|
1 1/8" |
28.575 |
50.0 |
44.450 |
41.1 |
30.0 |
11.1 |
|
1 1/2" |
38.100 |
66.0 |
53.975 |
45.5 |
35.5 |
10.0 |
|
2" |
50.800 |
75.5 |
69.850 |
58.2 |
45.2 |
13.0 |
