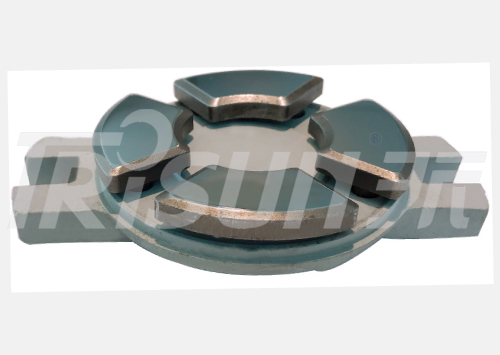

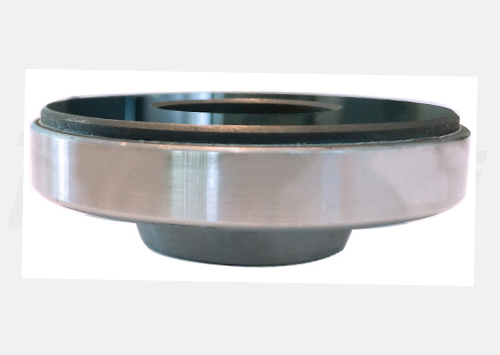

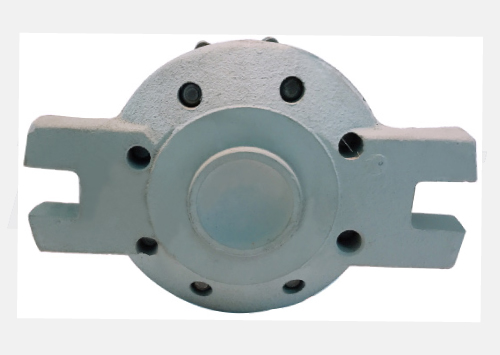

How to Measure Plates & Bearings(slot)For New Models/Design
|
Code
according
to Photes
in leftside
|
Instruction of Alphabet Code | Data(mm) |
|
Material of Plate (Cast Iron/
Mild Steel/Stainless Steel)
|
||
| M | Bore Diameter | |
| N | Carbon ID | |
| O | Carbon OD | |
| P | Plate OD(Total Diameter of plate) | |
| Q | Keyway Width(4/5/6/8) | |
| R | Keyway Depth | |
| S1 | Step Diameter(Bottom of Plate) | |
| S2 | Step Diameter(Bottom of Plate) | |
| T | Height of Plate(without carbon) | |
| U | Total Height of Plate(with carbon) | |
| V1 | Boss Height | |
| V2 | Boss Height | |
| A |
Quantity of Segment/ Pa
d (3/4/5/6/8)
|
|
| B | Total Height of Bearing / Slot | |
| C |
Bearing / Slot outer
(Total length with legs)
|
|
| D |
Bearing /Slot inner (length
without legs)
|
|
| E | Bearing /Slot width (legs gap) | |
| F | Rocker Radius Width | |
| G | Rocker Radius Depth | |
| H | Ball Height / Size (if any) |
You can fill out the form below to send your contact information and product demand submitted to us. We will solve as soon as possible! Thank you! To be able to contact you promptly and make sure you complete the full contact and demand information
