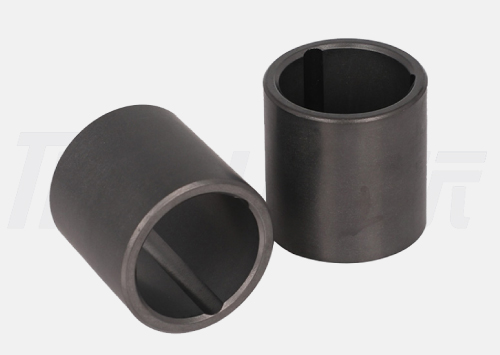

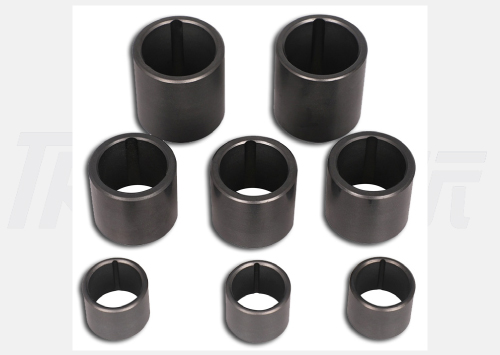

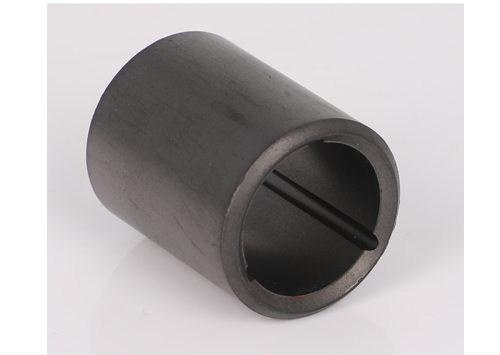

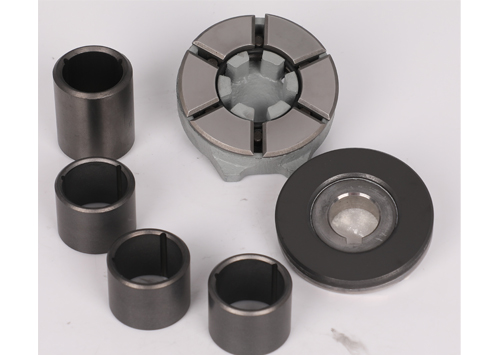

Carbon Bush
Performance Index Data Density g/c㎡ 1.82 Flexural Strength Mpa 60 Compressive Strength Mpa 160 Young Modulus Gpa, Min 22 Rockwell Hardness HR(5mm Ball @ 100 Kg Load) 100 Themal Conductivity W/m K 13...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
| Performance Index | Data |
| Density g/c㎡ | 1.82 |
| Flexural Strength Mpa | 60 |
| Compressive Strength Mpa | 160 |
| Young Modulus Gpa, Min | 22 |
| Rockwell Hardness HR(5mm Ball @ 100 Kg Load) | 100 |
| Themal Conductivity W/m K | 13 |
| Themal Expansion E /K | 5.0 |
| Porosity (open) Vol. % Max | 1.5 |
| Temperature Limit ℃ | 200 |
| ITEM CODE | A | B | L | D | R |
| TS-02147-01 | 24 | 17 | 23.5 | 0.5 | 2.75 |
| TS-02148-01 | 24 | 18 | 35.5 | 0.5 | 2.75 |
| TS-02620-02 | 26 | 20 | 25.5 | 0.5 | 1.5 |
| TS-02620-05 | 26 | 20 | 35.5 | 0.5 | 1.5 |
| TS-02922-01 | 29 | 22 | 25.5 | 0.5 | 2.75 |
| TS-03226-03 | 32 | 26 | 25.5 | 0.7 | 1.5 |
| TS-03226-05 | 32 | 26 | 40.5 | 0.7 | 1.5 |
| TS-03528-09 | 35 | 28 | 25.5 | 0.7 | 1.5 |
| TS-03528-03 | 35 | 28 | 35.5 | 0.7 | 2.75 |
| TS-03628-04 | 36 | 28 | 25.5 | 0.7 | 2.75 |
| TS-04032-08 | 40 | 32 | 50.5 | 1.0 | 5.0 |
| TS-04535-05 | 45 | 35 | 24.0 | 0.7 | 5.0 |
| TS-04535-09 | 45 | 35 | 38.5 | 0.7 | 5.0 |
| TS-04535-06 | 45 | 35 | 50.5 | 0.7 | 5.0 |
| TS-05038-05 | 50 | 38 | 40.5 | 1.0 | 5.0 |
| TS-05038-06 | 50 | 38 | 50.5 | 1.0 | 5.0 |
| TS-05040-11 | 50 | 40 | 24.0 | 0.7 | 5.0 |
| TS-05040-09 | 50 | 40 | 38.5 | 0.7 | 5.0 |
| TS-05040-02 | 50 | 40 | 50.5 | 0.7 | 5.0 |
| TS-05545-01 | 55 | 45 | 40.5 | 0.7 | 6.0 |
| TS-05545-04 | 55 | 45 | 50.5 | 0.7 | 6.0 |
