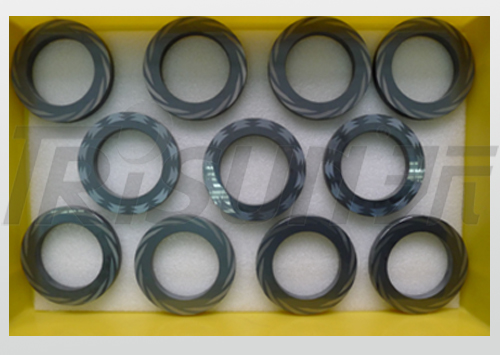

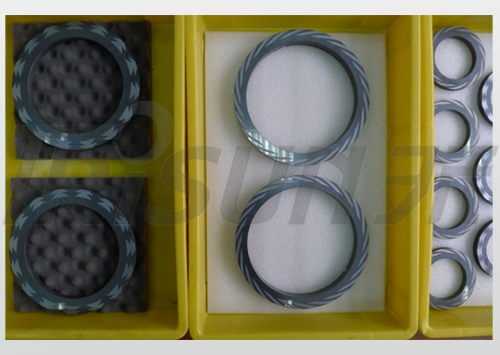

TSDGS-J01 Dry Gas Seal
TSDGS-J01 Operating Limits : Pressure: 1.6MPa Speed: 25m/s Temperature: -20℃~+260℃ Rotary Ring (SiC/TC) Stationary Ring (Carbon) Secondary SeaI (VITON/Encapsulated Ring/PTFE/EPDM/Kalrez) Other Par...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）

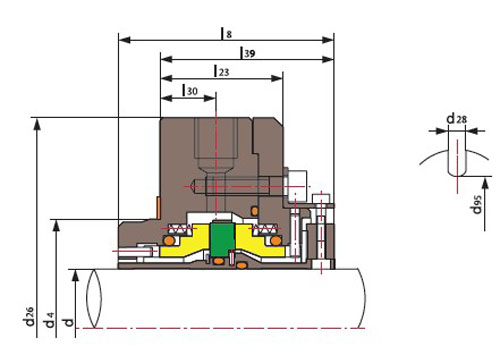

TSDGS-J01
|
d |
d4 |
d26 |
d28 |
d95 |
l8 |
123 |
130 |
l39 |
|
25 |
41 |
114 |
12 |
64.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
28 |
44 |
117 |
12 |
67.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
30 |
46 |
119 |
12 |
69.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
33 |
49 |
122 |
14 |
72.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
35 |
51 |
124 |
14 |
74.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
38 |
58 |
135 |
14 |
79.7 |
69.4 |
39.8 |
17.7 |
56.5 |
|
40 |
60 |
137 |
14 |
81.7 |
69.4 |
39.8 |
17.7 |
56.5 |
|
43 |
63 |
140 |
14 |
84.7 |
69.4 |
39.8 |
17.7 |
56.5 |
|
45 |
65 |
142 |
14 |
86.7 |
69.4 |
39.8 |
17.7 |
56.5 |
|
50 |
70 |
147 |
18 |
91.7 |
69.4 |
41.8 |
17.7 |
56.5 |
|
53 |
73 |
150 |
18 |
94.7 |
69.4 |
41.8 |
17.7 |
56.5 |
|
55 |
75 |
152 |
18 |
96.7 |
69.4 |
41.8 |
17.7 |
56.5 |
|
60 |
85 |
157 |
18 |
101.7 |
69.4 |
41.8 |
17.7 |
56.5 |
|
65 |
90 |
180 |
18 |
106.7 |
71.4 |
43.8 |
19.7 |
58.5 |
|
80 |
109 |
195 |
18 |
121.7 |
71.4 |
43.8 |
19.7 |
58.5 |
|
100 |
129 |
215 |
22 |
141.7 |
71.4 |
43.8 |
19.7 |
58.5 |
|
d |
d4 |
d26 |
d28 |
d95 |
l8 |
123 |
130 |
l39 |
|
0.875 |
1.500 |
3.750 |
0.437 |
2.295 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.000 |
1.625 |
3.750 |
0.437 |
2.421 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.125 |
1.750 |
4.250 |
0.437 |
2.469 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.250 |
2.000 |
4.250 |
0.437 |
2.669 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.375* |
2.125 |
4.250 |
0.437 |
2.795 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.375^ |
2.000 |
4.250 |
0.437 |
2.795 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.500 |
2.250 |
4.875 |
0.562 |
3.142 |
2.732 |
1.567 |
0.697 |
2.224 |
|
1.625 |
2.375 |
4.500 |
0.437 |
2.680 |
2.732 |
1.567 |
0.697 |
2.224 |
|
1.750 |
2.500 |
5.500 |
0.562 |
3.390 |
2.732 |
1.567 |
0.697 |
2.224 |
|
1.875 |
2.625 |
5.500 |
0.562 |
3.335 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.000 |
2.750 |
4.750 |
0.562 |
3.461 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.125 |
2.875 |
6.000 |
0.687 |
3.768 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.250 |
3.125 |
6.500 |
0.687 |
3.890 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.375 |
3.250 |
6.250 |
0.687 |
4.016 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.500 |
3.375 |
6.500 |
0.687 |
4.142 |
2.812 |
1.724 |
0.776 |
2.303 |
|
2.625 |
3.625 |
6.500 |
0.687 |
4.268 |
2.812 |
1.724 |
0.776 |
2.303 |
|
2.750 |
3.750 |
7.000 |
0.687 |
4.370 |
2.812 |
1.724 |
0.776 |
2.303 |
|
3.000 |
4.000 |
7.000 |
0.687 |
4.642 |
2.812 |
1.724 |
0.776 |
2.303 |
|
3.500 |
4.500 |
7.250 |
0.812 |
5.142 |
2.812 |
1.724 |
0.776 |
2.303 |
|
4.000 |
5.000 |
7.250 |
0.812 |
5.642 |
2.812 |
1.724 |
0.776 |
2.303 |
