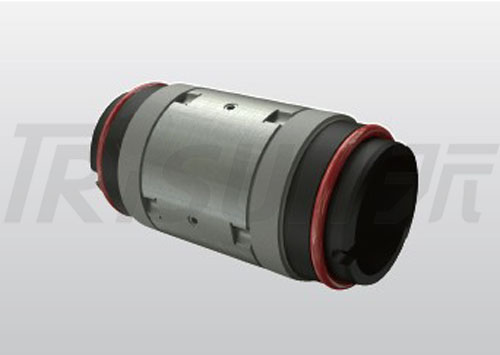

TSDGS-B02 Dry Gas Seal
TSDGS-B02 Operating Limits : Pressure: 2.3MPa Speed: 25m/s Temperature: -20℃~+260℃ Rotary Ring (Carbon/SiC) Stationary Ring (SiC) Secondary SeaI (VITON/Encapsulated Ring / PTFE / EPDM / Kalrez) Ot...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
TSDGS-B02
|
d1 |
d2 |
d3 |
d6 |
d7 |
d8 |
l1k |
l1′ |
l2 |
l3 |
l3′ |
l4 |
l5 |
l6 |
l7 |
l8 |
l9 |
I31 |
f |
mx |
|
28 |
33 |
48 |
37 |
43 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
30 |
35 |
50 |
39 |
45 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
32 |
38 |
55 |
42 |
48 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
33 |
38 |
55 |
42 |
48 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
35 |
40 |
57 |
44 |
50 |
3 |
50 |
89 |
20 |
38.5 |
66 |
33 |
2 |
5 |
9 |
19.5 |
11.5 |
16.5 |
5 |
M6 |
|
38 |
43 |
60 |
49 |
56 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
40 |
45 |
62 |
51 |
58 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
43 |
48 |
65 |
54 |
61 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
45 |
50 |
67 |
56 |
63 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
48 |
53 |
70 |
59 |
66 |
4 |
52.5 |
95 |
23 |
38.5 |
67 |
33.5 |
2 |
6 |
9 |
22 |
14 |
16.5 |
5 |
M6 |
|
50 |
55 |
72 |
62 |
70 |
4 |
57.5 |
99 |
25 |
42.5 |
69 |
34.5 |
2.5 |
6 |
9 |
23 |
15 |
16.5 |
5 |
M6 |
|
53 |
58 |
79 |
65 |
73 |
4 |
57.5 |
104 |
25 |
42.5 |
74 |
37 |
2.5 |
6 |
9 |
23 |
15 |
17 |
5 |
M6 |
|
55 |
60 |
81 |
67 |
75 |
4 |
57.5 |
106 |
25 |
42.5 |
76 |
38 |
2.5 |
6 |
9 |
23 |
15 |
17 |
5 |
M6 |
|
58 |
63 |
84 |
70 |
78 |
4 |
62.5 |
112 |
25 |
47.5 |
82 |
41 |
2.5 |
6 |
9 |
23 |
15 |
19 |
7 |
M8 |
|
60 |
65 |
86 |
72 |
80 |
4 |
62.5 |
112 |
25 |
47.5 |
82 |
41 |
2.5 |
6 |
9 |
23 |
15 |
19 |
7 |
M8 |
|
63 |
68 |
89 |
75 |
83 |
4 |
62.5 |
112 |
25 |
47.5 |
82 |
41 |
2.5 |
6 |
9 |
23 |
15 |
19 |
7 |
M8 |
|
65 |
70 |
91 |
77 |
85 |
4 |
62.5 |
112 |
25 |
47.5 |
82 |
41 |
2.5 |
6 |
9 |
23 |
15 |
19 |
7 |
M8 |
|
70 |
75 |
99 |
83 |
92 |
4 |
70 |
118 |
28 |
52 |
82 |
41 |
2.5 |
7 |
9 |
26 |
18 |
19 |
7 |
M8 |
|
75 |
80 |
104 |
88 |
97 |
4 |
70 |
120 |
28 |
52 |
84 |
42 |
2.5 |
7 |
9 |
26 |
18 |
19 |
7 |
M8 |
|
80 |
85 |
109 |
95 |
105 |
4 |
70 |
120 |
28 |
51.8 |
83.6 |
41.8 |
3 |
7 |
9 |
26.2 |
18.2 |
19 |
7 |
M8 |
|
85 |
90 |
114 |
100 |
110 |
4 |
75 |
120 |
28 |
56.8 |
83.6 |
41.8 |
3 |
7 |
9 |
26.2 |
18.2 |
19 |
7 |
M8 |
|
90 |
95 |
119 |
105 |
115 |
4 |
75 |
120 |
28 |
56.8 |
83.6 |
41.8 |
3 |
7 |
9 |
26.2 |
18.2 |
19 |
7 |
M8 |
|
95 |
100 |
124 |
110 |
120 |
4 |
75 |
120 |
28 |
57.8 |
85.6 |
42.8 |
3 |
7 |
9 |
25.2 |
17.2 |
19 |
7 |
M8 |
|
100 |
105 |
129 |
115 |
125 |
4 |
75 |
120 |
28 |
57.8 |
85.6 |
42.8 |
2 |
7 |
9 |
25.2 |
17.2 |
19 |
7 |
M8 |
|
105 |
115 |
148 |
122.2 |
134.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
\ |
30 |
20 |
22.5 |
7 |
M8 |
|
110 |
120 |
153 |
128.2 |
140.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
\ |
30 |
20 |
22.5 |
7 |
M8 |
|
115 |
125 |
158 |
136.2 |
148.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
\ |
30 |
20 |
22.5 |
7 |
M8 |
|
120 |
130 |
163 |
138.2 |
150.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
\ |
30 |
20 |
22.5 |
7 |
M8 |
|
125 |
135 |
168 |
142.2 |
154.3 |
5 |
73 |
133 |
32 |
53 |
93 |
46.5 |
2 |
10 |
\ |
30 |
20 |
22.5 |
7 |
M8 |
