Single-Spring Mechanical Seal

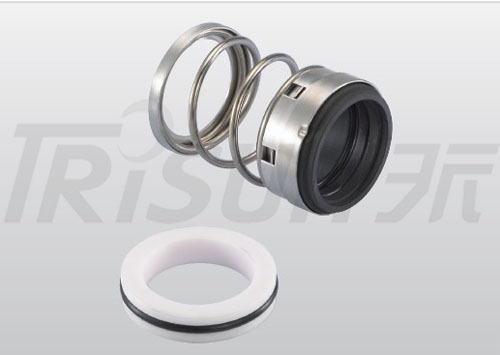

TS 580B Single-Spring Mechanical Seal Replace AESSEAL (replace CRANE 1（EURO）)

TS 580B Single-Spring Mechanical Seal Replace AESSEAL (replace CRANE 1（EURO）)

TS 580B Replace John Crane Type 1A(European Standard). Operating Limits： Pressure: 2.8MPa Speed: 13 m/s Temperature: -30℃～+200℃ Rotary Ring(Carbon/Sic/tc) Stationary Ring(Ceramic/Sic/Tc/SUS304...

We are here to solve your problems professionally
Contact Now

Contact
  • TS 580B Single-Spring Mechanical Seal Replace AESSEAL (replace CRANE 1（EURO）)
  • TS 580B Single-Spring Mechanical Seal Replace AESSEAL (replace CRANE 1（EURO）)
  • TS 580B Single-Spring Mechanical Seal Replace AESSEAL (replace CRANE 1（EURO）)
  • TS 580B Single-Spring Mechanical Seal Replace AESSEAL (replace CRANE 1（EURO）)
Related Products
TS 580B Replace John Crane Type 1A(European Standard).

Operating Limits：
Pressure:   ≤2.8MPa
Speed:   ≤13 m/s
Temperature:   -30℃～+200℃

Rotary Ring(Carbon/Sic/tc)
Stationary Ring(Ceramic/Sic/Tc/SUS304)
Secondary Ring(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)

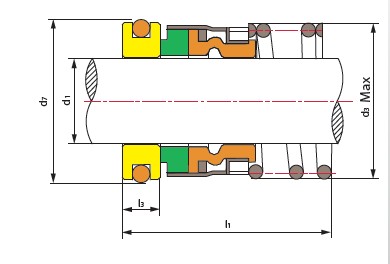

Model d1(mm) d3 d7 l1 l3
TS580B-14 14 29 25 52 8
TS580B-16 16 29 27 52 8
TS580B-18 18 32 33 52 8
TS580B-19 19 32 35 52 8
TS580B-20 20 33 37 52 8
TS580B-24 24 38 39 52 8
TS580B-25 25 38 40 52 8
TS580B-28 28 46 43 69 9
TS580B-30 30 49 45 69 9
TS580B-32 32 49 48 69 9

Model d1(mm) d3 d7 l1 l3
TS580B-35 35 52 50 70 10
TS580B-38 38 56 56 70 10
TS580B-40 40 59 58 70 10
TS580B-45 45 62 63 81 10
TS580B-48 48 65 66 81 10
TS580B-50 50 68 70 81 10
TS580B-55 55 75 75 83 12
TS580B-60 60 78 80 83 12
TS580B-65 65 86 85 83 12
