TS T2 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P04U,Crane 2 (US) and FLOWSERVE 52)
Replace John Crane Type 2 withcup seat (US Standard), and O-Ring seat also can be provided Operating Limits： Pressure: 2.8MPa Speed: 13 m/s Temperature: -30℃～+200℃ Rotary Ring(Carbon/Sic/tc) S...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Replace John Crane Type 2 with‘cup’ seat (US Standard), and O-Ring seat also can be provided
Operating Limits：
Pressure: ≤2.8MPa
Speed: ≤13 m/s
Temperature: -30℃～+200℃
Rotary Ring(Carbon/Sic/tc)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)

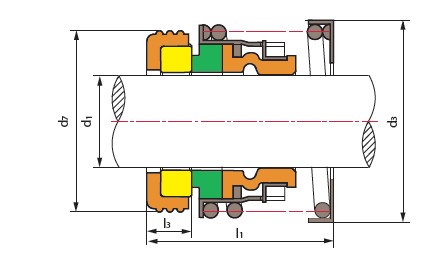

| Model | d1 (inches) | d3 | d7 | l1 | l3 |
| T2-1" | 25.4 | 46 | 41.275 | 36.5 | 11.1 |
| T2-1 1/8" | 28.575 | 49.2 | 44.45 | 38.1 | 11.1 |
| T2-1 1/4" | 31.75 | 52.4 | 47.625 | 38.1 | 11.1 |
| T2-1 3/8" | 34.925 | 57.2 | 50.8 | 39.7 | 11.1 |
| T2-1 1/2" | 38.1 | 60.3 | 53.975 | 39.7 | 11.1 |
| T2-1 5/8" | 41.275 | 69 | 60.325 | 47.63 | 12.7 |
| T2-1 3/4" | 44.45 | 69.9 | 63.5 | 47.63 | 12.7 |
| T2-1 7/8" | 47.625 | 73 | 66.675 | 50.8 | 12.7 |
| T2-2" | 50.8 | 76.2 | 69.85 | 50.8 | 12.7 |
| T2-2 1/8" | 53.975 | 82.5 | 76.2 | 57.15 | 14.3 |
| T2-2 1/4" | 57.15 | 85.7 | 79.375 | 57.15 | 14.3 |
| T2-2 3/8" | 60.325 | 88.9 | 82.55 | 60.3 | 14.3 |
| T2-2 1/2" | 63.5 | 94 | 85.725 | 60.3 | 14.3 |
| T2-3" | 76.2 | 107.95 | 98.425 | 68.28 | 15.9 |
| T2-4" | 101.6 | 141.28 | 123.83 | 78.57 | 19.84 |
