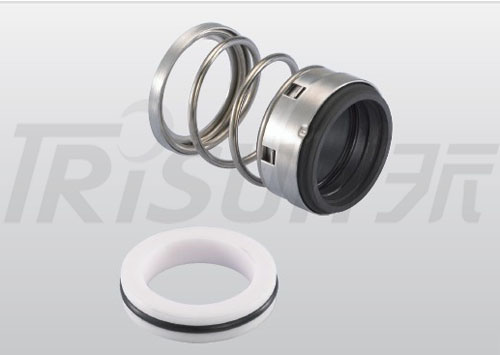

TS T1 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P05U and CRANE 1 (US) )
Replace John Crane Type 1 (US Standard). Operating Limits： Pressure: 2.8MPa Speed: 13 m/s Temperature: -30℃～+200℃ Rotary Ring(Carbon/Sic/tc) Stationary Ring(Ceramic/Sic/Tc/SUS304) Secondary Ri...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Replace John Crane Type 1 (US Standard).
Operating Limits：
Pressure: ≤2.8MPa
Speed: ≤13 m/s
Temperature: -30℃～+200℃
Rotary Ring(Carbon/Sic/tc)
Stationary Ring(Ceramic/Sic/Tc/SUS304)
Secondary Ring(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)
| Model | d1(inches) | d3 | d7 | l1 | l3 |
| T1-1 " | 25.4 | 38.1 | 41.275 | 50.77 | 11.1 |
| T1-1 1/8" | 28.575 | 41.5 | 44.45 | 52.4 | 11.1 |
| T1-1 1/4" | 31.75 | 46 | 47.625 | 52.4 | 11.1 |
| T1-1 3/8" | 34.925 | 47.6 | 50.8 | 53.9 | 11.1 |
| T1-1 7/16" | 36.5 | 50.8 | 53.975 | 53.9 | 11.1 |
| T1-1 1/2" | 38.1 | 50.8 | 53.975 | 53.9 | 11.1 |
| T1-1 5/8" | 41.275 | 57.2 | 60.325 | 63.5 | 12.7 |
| T1-1 3/4" | 44.45 | 60.5 | 63.5 | 63.5 | 12.7 |
| T1-1 7/8" | 47.625 | 63.5 | 66.675 | 66.7 | 12.7 |
| T1-2" | 50.8 | 66.7 | 69.85 | 66.7 | 12.7 |
| T1-2 1/8" | 53.975 | 71.4 | 76.2 | 74.6 | 14.3 |
| T1-2 1/4" | 57.15 | 74.6 | 79.375 | 74.6 | 14.3 |
| T1-2 3/8" | 60.325 | 77.8 | 82.55 | 77.8 | 14.3 |
| T1-2 1/2" | 63.5 | 81 | 85.725 | 77.8 | 14.3 |
| T1-2 5/8" | 66.675 | 85.7 | 85.725 | 85.75 | 15.9 |
| T1-2 3/4" | 69.85 | 88.9 | 88.9 | 85.75 | 15.9 |
| T1-2 7/8" | 73.025 | 92 | 95.25 | 88.9 | 15.9 |
| T1-3" | 76.2 | 95.2 | 98.425 | 88.9 | 15.9 |
| T1-3 1/2" | 88.9 | 111.1 | 111.1 | 99.18 | 19.8 |
