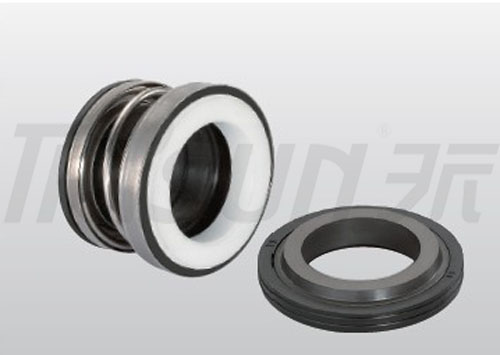

TS 103 Single-Spring Mechanical Seal
Operating Limits： Pressure: 0.8MPa Speed: 5 m/s Temperature: -30℃～+200℃ Rotary Ring(Ceramic) StationaryRing(Plastic Carbon) Secondary Ring(nbr/VITON) Spring and Retainer(S.S/Copper) ...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Operating Limits：
Pressure: ≤0.8MPa
Speed: ≤5 m/s
Temperature: -30℃～+200℃
Rotary Ring(Ceramic)
StationaryRing(Plastic Carbon)
Secondary Ring(nbr/VITON)
Spring and Retainer(S.S/Copper)

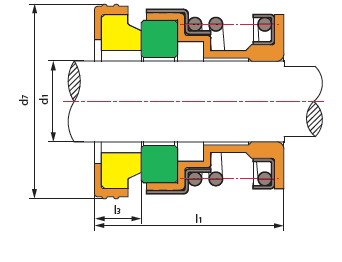

| Model | d1 (mm) | d7 | l1 | l3 |
| TS103-10 | 10 | 25 | 20.5 | 5 |
| TS103-12 | 12 | 26 | 20.5 | 5.5 |
| TS103-12L | 12 | 26 | 20.5 | 7.5 |
| TS103-14 | 14 | 30 | 20.5 | 7 |
| TS103-17 | 17 | 35 | 20.5 | 7 |
| TS103-18 | 18 | 35 | 20.5 | 7 |
