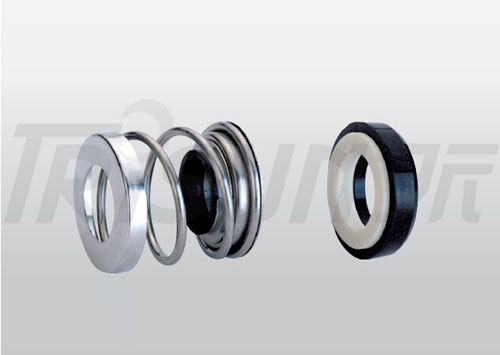

TS 70 Single-Spring Mechanical Seal Replace AESSEAL (replace MTU FP/S-TYPE a)
Operating Limits： Pressure: 0.6MPa Speed: 10 m/s Temperature: -30℃～+200℃ Rotary Ring(Plastic Carbon/Carbon/Sic/tc)Stationary Ring(Ceramic/Sic/Tc) Secondary Seal(nbr/Epdm/VITON) Spring Other Pa...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Operating Limits：
Pressure: ≤0.6MPa
Speed: ≤10 m/s
Temperature: -30℃～+200℃
Rotary Ring(Plastic Carbon/Carbon/Sic/tc)Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)

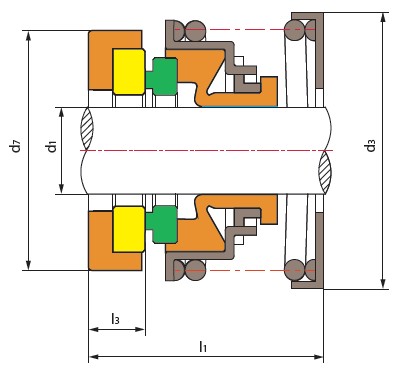

| Model | d1 (mm) | d7 | d3 | l1 | l3 |
| TS70-10 | 10 | 25.4 | 22.6 | 19 | 5.6 |
| TS70-13 | 13 | 29.5 | 31.5 | 32 | 8 |
| TS70-14 | 14 | 29.5 | 31.5 | 32 | 8 |
| TS70-15 | 15 | 29.5 | 31.5 | 26/32 | 8 |
| TS70-16 | 16 | 29.5 | 31.5 | 26/32 | 8 |
