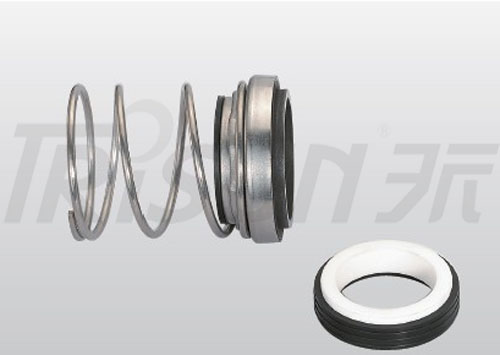

TS 166T Single-Spring Mechanical Seal Replace AESSEAL (replace FLOWSERVE 21)
Operating Limits： Pressure: 1MPa Speed: 10 m/s Temperature: -30℃～+200℃ Rotary Ring( Carbon/Sic/tc) Stationary Ring(Ceramic/Sic/TC) Cup Gasket(nbr/Epdm/VITON) Spring(Sus304/Sus316) DriveRing(SU...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Operating Limits：
Pressure: ≤1MPa
Speed: ≤10 m/s
Temperature: -30℃～+200℃
Rotary Ring( Carbon/Sic/tc)
Stationary Ring(Ceramic/Sic/TC)
Cup Gasket(nbr/Epdm/VITON)
Spring(Sus304/Sus316)
Drive Ring(SUS304/SUS316)
Retainer(SUS304/SUS316)
Bellows(nbr/Epdm/VITON)
Drive Ring(SUS304/SUS316)
Retainer(SUS304/SUS316)
Bellows(nbr/Epdm/VITON)
| Model | d1(inches) | d3 | d7 | l1 | l3 |
| TS166T-3/8" | 9.525 | 23.292 | 24.587 | 34.138 | 8.738 |
| TS166T-7/16" | 11.1 | 22 | 30 | 26 | 5.4 |
| TS166T-1/2" | 12.7 | 23.292 | 27.788 | 34.138 | 8.738 |
| TS166T-5/8" | 15.875 | 30.099 | 30.937 | 35.712 | 10.312 |
| TS166T-3/4" | 19.05 | 33.071 | 33.1/34.138 | 35.712 | 6.5/10.312 |
| TS166T-7/8" | 22.225 | 36.297 | 37.287 | 35.712 | 10.312 |
| TS166T-1" | 25.4 | 39.421 | 40.488/41.28 | 43.307 | 10.3/11.1 |
| TS166T-1 1/8" | 28.575 | 44.45 | 47.625 | 44.907 | 11.913 |
| TS166T-1 1/4" | 31.75 | 47.625 | 50.8 | 44.907 | 11.913 |
| TS166T-1 3/8" | 34.925 | 50.8 | 53.975 | 44.907 | 11.913 |
| TS166T-1 1/2" | 38.1 | 53.975 | 57.15 | 44.907 | 11.913 |
| TS166T-1 5/8" | 41.275 | 60.325 | 60.325 | 44.907 | 11.913 |
| TS166T-1 3/4" | 44.45 | 60.325 | 63.5 | 52.934 | 11.913 |
| TS166T-1 7/8" | 47.625 | 63.881 | 66.675 | 52.934 | 11.913 |
| TS166T-2" | 50.8 | 69 | 69.85 | 54.508 | 13.487 |
| TS166T-3" | 76.2 | 98.4 | 101.6 | 68.25 | 15.875 |
| Model | d1(mm) | d3 | d7 | l1 | l3 |
| TS166T-12 | 12 | 23.3 | 27.8 | 34.1 | 8.7 |
| TS166T-16 | 16 | 30.1 | 30.95 | 35.7 | 10.3 |
| TS166T-20 | 20 | 36.3 | 35.7 | 35.7 | 10.3 |
| TS166T-22 | 22 | 36.3 | 37.3 | 35.7 | 10.3 |
| TS166T-24 | 24 | 39.4 | 40.5 | 35.7 | 10.3 |
| TS166T-25 | 25 | 39.4 | 40.5 | 35.7 | 10.3 |
| TS166T-28 | 28 | 44.4 | 47.65 | 45.2 | 11.9 |
| TS166T-30 | 30 | 47.6 | 50.8 | 45.2 | 11.9 |
| TS166T-32 | 32 | 47.6 | 50.8 | 45.2 | 11.9 |
| TS166T-35 | 35 | 50.8 | 54 | 45.2 | 11.9 |
| TS166T-38 | 38 | 54 | 57.15 | 45.2 | 11.9 |
| TS166T-40 | 40 | 60.3 | 60.35 | 45.2 | 11.9 |
| TS166T-45 | 46 | 66.7 | 63.5 | 52.4 | 11.9 |
| TS166T-48 | 48 | 66.7 | 66.7 | 52.4 | 11.9 |
| TS166T-50 | 50 | 69 | 69.85 | 54 | 13.5 |
| TS166T-55 | 55 | 74.6 | 73.05 | 54 | 13.5 |
