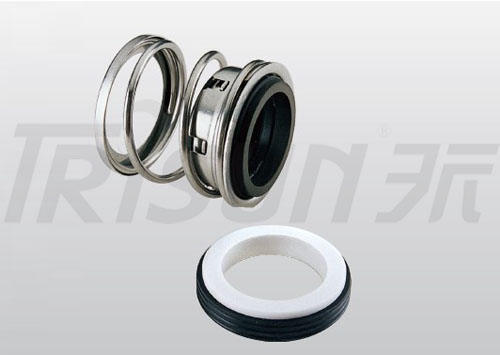

TS 580 Single-Spring Mechanical Seal Replace AESSEAL (replace CRANE 1（EURO）)
TS 580 Replace John Crane Type 2 with N seat(Euro Standard), and WM seat also can be provided Operating Limits： Pressure: 2.8MPa Speed: 13 m/s Temperature: -30℃～+200℃ Rotary Ring(Carbon/Sic/tc...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
TS 580 Replace John Crane Type 2 with "N"
seat(Euro Standard), and "WM" seat also can
be provided
Operating Limits：
Pressure: ≤2.8MPa
Speed: ≤13 m/s
Temperature: -30℃～+200℃
Rotary Ring(Carbon/Sic/tc)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)

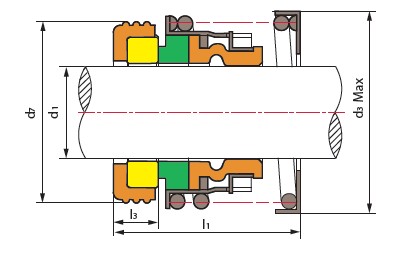

| Model | d1 (inches) | d3 | d7 | l1 | l3 |
| TS580-3/8" | 9.525 | 28 | 24.6 | 33.7 | 8.7 |
| TS580-1/2" | 12.7 | 32 | 27.8 | 33.7 | 8.7 |
| TS580-5/8" | 15.875 | 35 | 30.95 | 35.3 | 10.3 |
| TS580-3/4" | 19.05 | 40 | 34.15 | 35.3 | 10.3 |
| TS580-7/8" | 22.225 | 43 | 37.3 | 35.3 | 10.3 |
| TS580-1" | 25.4 | 47 | 40.5 | 35.3 | 10.3 |
| TS580-1 1/8" | 28.575 | 56 | 47.65 | 44.9 | 11.9 |
| TS580-1 1/4" | 31.75 | 59 | 50.8 | 44.9 | 11.9 |
| TS580-1 3/8" | 34.925 | 63 | 54 | 44.9 | 11.9 |
| TS580-1 1/2" | 38.1 | 67 | 57.15 | 44.9 | 11.9 |
| TS580-1 5/8" | 41.275 | 71 | 60.35 | 44.9 | 11.9 |
| TS580-1 3/4" | 44.45 | 74 | 63.5 | 52.9 | 11.9 |
| TS580-1 7/8" | 47.625 | 77 | 66.7 | 52.9 | 11.9 |
| TS580-2" | 50.8 | 81 | 69.85 | 54.5 | 13.5 |
| TS580-2 1/8" | 53.97 | 84 | 73.05 | 54.5 | 13.5 |
| TS580-2 1/4" | 57.15 | 88 | 76.2 | 54.5 | 13.5 |
| TS580-2 3/8" | 60.32 | 91 | 79.4 | 54.5 | 13.5 |
| TS580-2 1/2" | 63.5 | 94 | 82.55 | 54.5 | 13.5 |
| Model | d1(inches) | d3 | d7 | l1 | l3 |
| TS580-20 | 20 | 41 | 35 | 35 | 10 |
| TS580-22 | 22 | 41 | 37 | 35 | 10 |
| TS580-24 | 24 | 47 | 39 | 35 | 10 |
| TS580-25 | 25 | 47 | 40 | 35 | 10 |
| TS580-28 | 28 | 51 | 43 | 44.9 | 11.9 |
| TS580-30 | 30 | 55 | 45 | 43 | 10 |
| TS580-32 | 32 | 55 | 48 | 44.9 | 11.9 |
| TS580-35 | 35 | 56 | 50 | 43 | 10 |
| TS580-38 | 38 | 66 | 56 | 44 | 11 |
| TS580-40 | 40 | 67 | 58 | 44 | 11 |
| TS580-43 | 43 | 72 | 61 | 52 | 11 |
| TS580-45 | 45 | 72 | 63 | 52 | 11 |
| TS580-48 | 48 | 76 | 66 | 52 | 11 |
| TS580-50 | 50 | 80 | 70 | 52 | 11 |
| TS580-55 | 55 | 88 | 75 | 53 | 12 |
| TS580-60 | 60 | 91 | 80 | 53 | 12 |
