Single-Spring Mechanical Seal

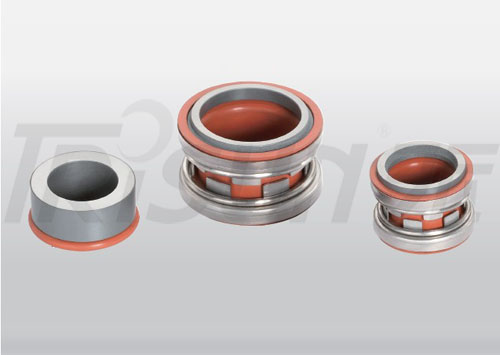

TS CG Single-Spring Mechanical Seal

TS CG Single-Spring Mechanical Seal

Operating Limits： Pressure: 1.2MPa Speed: 10 m/s Temperature: -30℃～+200℃ Replace John Crane type 2100 with BO seat , and G60 seat also can be provided Rotary Ring(Carbon/Sic/TC) Stationary Rin...

We are here to solve your problems professionally
Contact Now

Contact
  • TS CG Single-Spring Mechanical Seal
  • TS CG Single-Spring Mechanical Seal
  • TS CG Single-Spring Mechanical Seal
  • TS CG Single-Spring Mechanical Seal
Related Products
Operating Limits：
Pressure:   ≤1.2MPa
Speed:   ≤10 m/s
Temperature:   -30℃～+200℃

Replace John Crane type 2100 with "BO" seat ,
and "G60" seat also can be provided

Rotary Ring(Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)

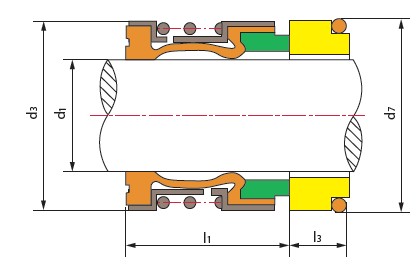

Model d1 (mm) d3 d7 l1 l3
TSCG-16 16 26 27 15 12
TSCG-18 18 32 33 20 13.5
TSCG-20 20 34 35 20 13.5
TSCG-22 22 36 37 20 13.5
TSCG-24 24 38 39 20 13.5
TSCG-25 25 39 40 20 13
TSCG-28 28 42 43 26 12.5
TSCG-30 30 44 45 26 12
TSCG-32 32 46 48 26 12
TSCG-33 33 47 48 26 12
TSCG-35 35 49 50 26 12
TSCG-38 38 54 56 30 13

Model d1 (mm) d3 d7 l1 l3
TSCG-40 40 56 58 30 13
TSCG-43 43 59 61 30 13
TSCG-45 45 61 63 30 13
TSCG-48 48 64 66 30 13
TSCG-50 50 66 70 30 13.5
TSCG-53 53 69 73 30 13.5
TSCG-55 55 71 75 30 13.5
TSCG-60 60 80 80 33 13.5
TSCG-65 65 85 85 33 13.5
TSCG-70 70 90 92 33 14.5
TSCG-75 75 99 97 40 14.5
