Single-Spring Mechanical Seal

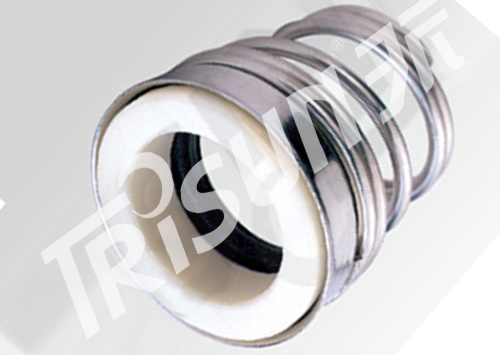

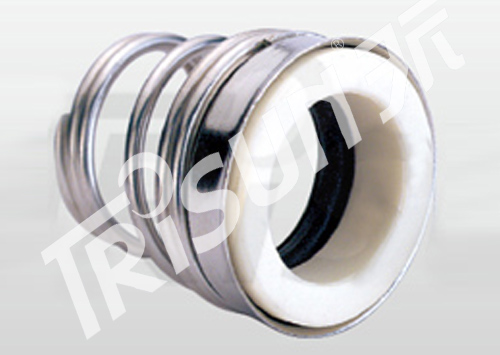

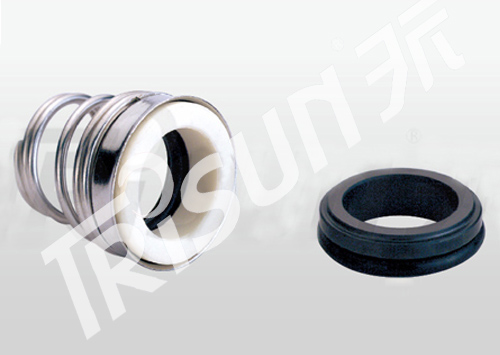

TS 155, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)

TS 155, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)

TS 155 Operating Limits： Pressure: 1MPa Speed: 15 m/s Temperature: -30℃～+200℃ Rotary Ring(Sic/tc) Stationary Ring(Plastic Carbon/Carbon/Sic/Tc) Secondary Seal(nbr/Epdm/VITON) Spring Other Part...

We are here to solve your problems professionally
Contact Now

Contact
  • TS 155, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)
  • TS 155, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)
  • TS 155, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)
  • TS 155, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)
Related Products
TS 155



Operating Limits：
Pressure:   ≤1MPa
Speed:   ≤15 m/s
Temperature:   -30℃～+200℃

Rotary Ring(Sic/tc)
Stationary Ring(Plastic Carbon/Carbon/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)



                                                             TS 155

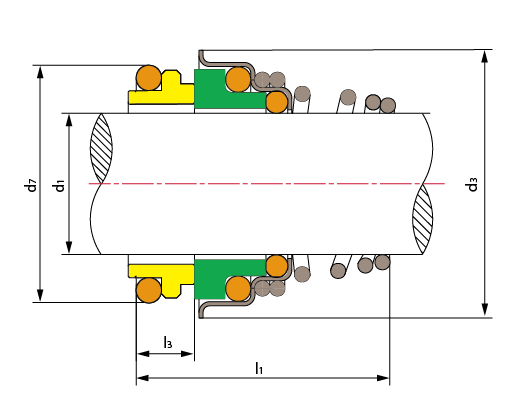

Model d1 (mm) d3 d7 l1 l3
TS155-10 10 20 18.1 20.5 5.5
TS155-11 11 22 20.6 23.5 5.5
TS155-12 12 22 20.6 23.5 5.5
TS155-13 13 25 23.1 28 6
TS155-14 14 25 23.1 28 6
TS155-15 15 29 26.9 30 7
TS155-16 16 29 26.9 30 7
TS155-17 17 29 26.9 30 7
TS155-18 18 33 30.9 32 8
TS155-19 19 33 30.9 33 8
TS155-20 20 33 30.9 33 8
TS155-21 21 38 35.4 33 8

Model d1 (mm) d3 d7 l1 l3
TS155-22 22 38 35.4 33 8
TS155-23 23 38 35.4 35 8
TS155-24 24 38 35.4 35 8
TS155-25 25 40 38.2 35.5 8.5
TS155-28 28 46 43.3 39 9
TS155-29 29 46 43.3 39 9
TS155-30 30 46 43.3 39 9
TS155-32 32 46 43.3 39 9
TS155-33 33 50 53.5 50.5 11.5
TS155-35 35 50 53.5 50.5 11.5
TS155-38 38 60.5 60.5 50.5 11.5
TS155-40 40 60.5 60.5 50.5 11.5
