Single-Spring Mechanical Seal

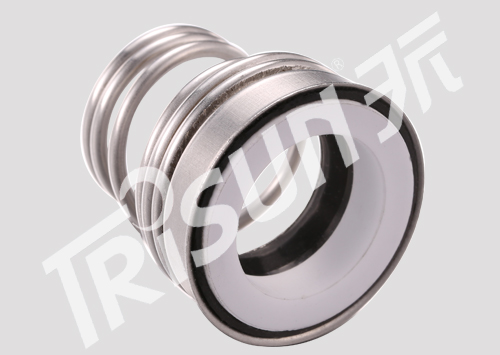

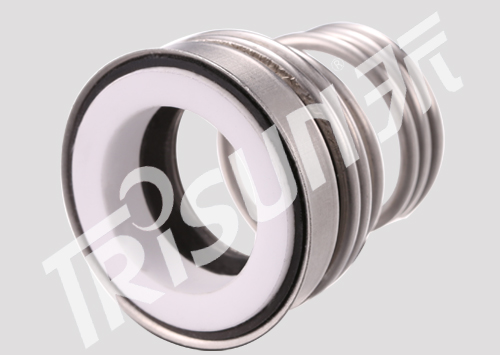

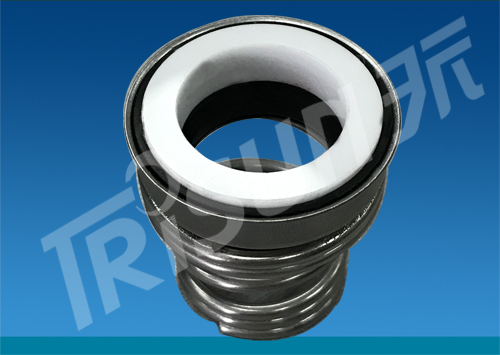

TS 155B, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)

TS 155B, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)

TS 155B new design : Change the O ring and L ceramic into rubber gasket with normal round ring. Better quality, the ceramic and rubber gasket will match perfect and long-term seal. Operating Limits：...

We are here to solve your problems professionally
Contact Now

Contact
  • TS 155B, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)
  • TS 155B, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)
  • TS 155B, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)
  • TS 155B, Single-Spring Mechanical Seal Replace AESSEAL(replace AESSEAL T04,Burgmann BT-FN,FLOWSERVE 43 and MUT SIMPLEX)
Related Products
TS 155B


new design : Change the O ring and L ceramic into rubber gasket with normal round ring.
Better quality, the ceramic and rubber gasket will match perfect and long-term seal.


Operating Limits：
Pressure:   ≤1MPa
Speed:   ≤15 m/s
Temperature:   -30℃～+200℃

Rotary Ring(Ceramic/Sic/tc)
Stationary Ring(Plastic Carbon/Carbon/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)




                                                             TS 155B

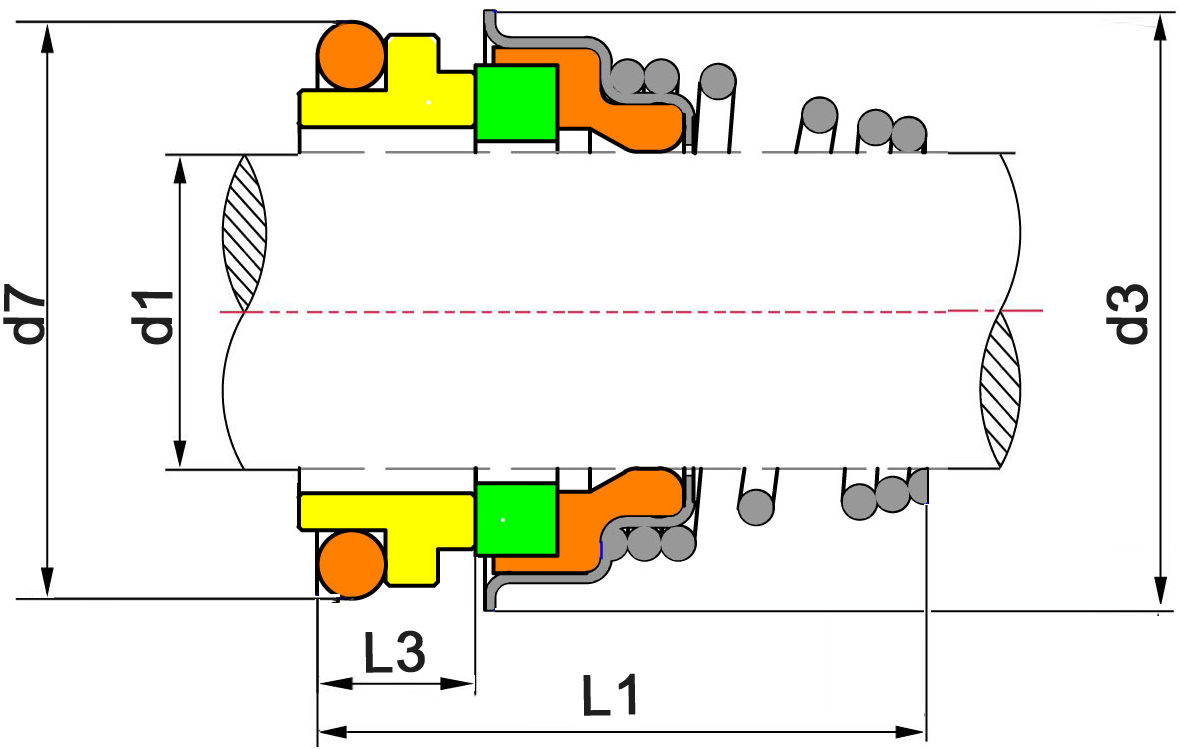

Model d1 (mm) d3 d7 l1 l3
TS155B-10 10 20 18.1 20.5 5.5
TS155B-11 11 22 20.6 23.5 5.5
TS155B-12 12 22 20.6 23.5 5.5
TS155B-13 13 25 23.1 28 6
TS155B-14 14 25 23.1 28 6
TS155B-15 15 29 26.9 30 7
TS155B-16 16 29 26.9 30 7
TS155B-17 17 29 26.9 30 7
TS155B-18 18 33 30.9 32 8
TS155B-19 19 33 30.9 33 8
TS155B-20 20 33 30.9 33 8
TS155B-21 21 38 35.4 33 8

Model d1 (mm) d3 d7 l1 l3
TS155B-22 22 38 35.4 33 8
TS155B-23 23 38 35.4 35 8
TS155B-24 24 38 35.4 35 8
TS155B-25 25 40 38.2 35.5 8.5
TS155B-28 28 46 43.3 39 9
TS155B-29 29 46 43.3 39 9
TS155B-30 30 46 43.3 39 9
TS155B-32 32 46 43.3 39 9
TS155B-33 33 50 53.5 50.5 11.5
TS155B-35 35 50 53.5 50.5 11.5
TS155B-38 38 60.5 60.5 50.5 11.5
TS155B-40 40 60.5 60.5 50.5 11.5
