Single-Spring Mechanical Seal

TS 156 Single-Spring Mechanical Seal Replace AESSEAL (replace NOK EAGLE EA100)

TS 156 Single-Spring Mechanical Seal Replace AESSEAL (replace NOK EAGLE EA100)

Operating Limits： Pressure: 0.5MPa Speed: 10m/s Temperature: -30℃～+200℃ Rotary Ring(Plastic Carbon/Carbon/Sic/TC) Stationary Ring(Ceramic/Sic/Tc) Secondary Seal(nbr/Epdm/VITON) Spring Other Pa...

We are here to solve your problems professionally
Contact Now

Contact
  • TS 156 Single-Spring Mechanical Seal Replace AESSEAL (replace NOK EAGLE EA100)
  • TS 156 Single-Spring Mechanical Seal Replace AESSEAL (replace NOK EAGLE EA100)
  • TS 156 Single-Spring Mechanical Seal Replace AESSEAL (replace NOK EAGLE EA100)
  • TS 156 Single-Spring Mechanical Seal Replace AESSEAL (replace NOK EAGLE EA100)
Related Products
Operating Limits：
Pressure:   ≤0.5MPa
Speed:   ≤10m/s
Temperature:   -30℃～+200℃

Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)

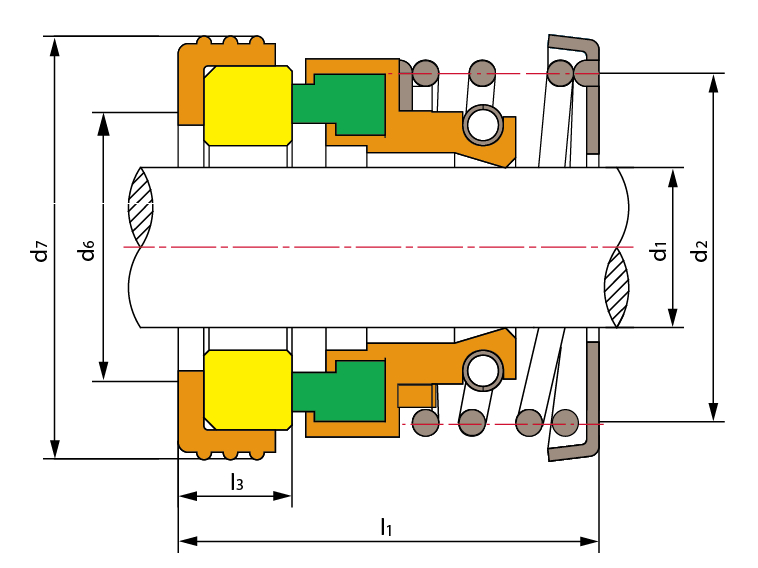

Model d1 (mm) d2 d6 d7 l1 l3
TS156-8 8 16 13 18/21 18 5/6
TS156-9 9 18 16 21 23 6
TS156-10 10 20 16 20/22/24 23 6.5
TS156-11 11 20 16 24 23 7
TS156-12 12 22.5 17 26 24 7
TS156-13 13 22.5 17 26 24 7
TS156-14 14 24.5 21 28/30 25 7
TS156-15 15 24.5 21 28/30 25 7
TS156-16 16 28.5 22 32 27 8
TS156-17 17 28.5 22 32 27 8
TS156-18 18 31.5 25 35 29 8
TS156-19 19 31.5 25 35 29 8

Model d1 (mm) d2 d6 d7 l1 l3
TS156-20 20 31.5 27 38 31 8
TS156-22 22 34.5 29 40 32 8
TS156-25 25 37.5 32 44 33 9
TS156-28 28 40.5 34 46 34 9
TS156-30 30 44.5 38 50 35 9
TS156-32 32 47.5 40 54 37 9
TS156-35 35 50.5 44 58 40 10
TS156-38 38 55 46 60 42 10
TS156-40 40 56.5 48 64 43 10
TS156-45 45 61.5 52 66 45 10
TS156-50 50 66.5 58 72 47 10
