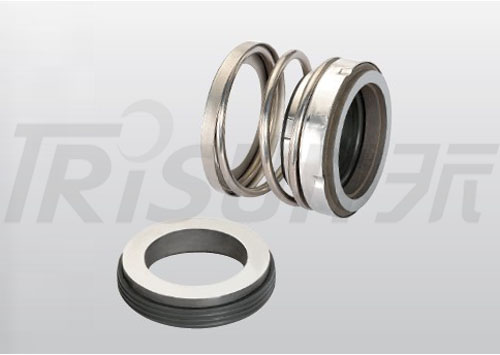

Single-Spring Mechanical Seal

TS 43 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P03,CRANE 521,FLOWSERVE 240 and MTU FP/D)

TS 43 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P03,CRANE 521,FLOWSERVE 240 and MTU FP/D)

Design Feature: Installation dimension conform to ISO3069,DIN24960 and GB6556 Operating Limits： Pressure: 1MPa Speed: 10 m/s Temperature: -30℃～+200℃ Rotary Ring(Carbon/Sic/TC) Stationary Ring(...

We are here to solve your problems professionally
Contact Now

Contact
  • TS 43 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P03,CRANE 521,FLOWSERVE 240 and MTU FP/D)
  • TS 43 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P03,CRANE 521,FLOWSERVE 240 and MTU FP/D)
  • TS 43 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P03,CRANE 521,FLOWSERVE 240 and MTU FP/D)
  • TS 43 Single-Spring Mechanical Seal Replace AESSEAL (replace AESSEAL P03,CRANE 521,FLOWSERVE 240 and MTU FP/D)
Related Products
Design Feature: Installation dimension conform to
　　                             ISO3069,DIN24960 and GB6556
Operating Limits：
Pressure:   ≤1MPa
Speed:   ≤10 m/s
Temperature:   -30℃～+200℃

Rotary Ring(Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(S.S/Sus304/Sus316)

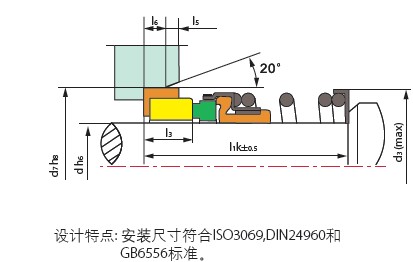

Model d (mm) d3 d7 l1k l3 l5 l6
TS43-10 10 20.6 21 32.5 6 1.5 4
TS43-12 12 22 23 32.5 6.6 1.5 4
TS43-14 14 24 25 35 8 1.5 4
TS43-16 16 26 27 35 8 1.5 4
TS43-18 18 32 33 37.5 10 2 5
TS43-20 20 34 35 37.5 10 2 5
TS43-22 22 37 37 37.5 10 2 5
TS43-24 24 39 39 40 10 2 5
TS43-25 25 39 40 40 10 2 5
TS43-28 28 42 43 42.5 10 2 5
TS43-30 30 44 45 42.5 10 2 5
TS43-32 32 47 48 42.5 10 2 5
TS43-33 33 47 48 42.5 10 2 5
TS43-35 35 49 50 42.5 10.5 2 5
TS43-38 38 54 56 45 11 2 6
TS43-40 40 56 58 45 10.5 2 6
TS43-43 43 59 61 45 11 2 6

Model d (mm) d3 d7 l1k l3 l5 l6
TS43-45 45 62 63 45 10.5 2 6
TS43-48 48 64 66 45 10.5 2 6
TS43-50 50 66 70 47.5 11 2.5 6
TS43-53 53 69 73 47.5 11.5 2.5 6
TS43-55 55 72 75 47.5 12 2.5 6
TS43-58 58 80 78 52.5 12 2.5 6
TS43-60 60 80 80 52.5 12 2.5 6
TS43-63 63 83 83 52.5 12 2.5 6
TS43-65 65 85 85 52.5 13 2.5 6
TS43-68 68 88 90 52.5 11.3 2.5 7
TS43-70 70 90 92 60 11.3 2.5 7
TS43-75 75 99 97 60 11.3 2.5 7
TS43-80 80 104 105 60 12 3 7
TS43-85 85 108 110 60 14 3 7
TS43-90 90 114 115 65 14 3 7
TS43-95 95 119 120 65 14 3 7
TS43-100 100 124 125 65 14 3 7
